ACCELERATED AGGREGATE (ROADSTONE) POLISHING MACHINE
It consist of a road wheel suitable for clamping 14 road stone specimens on its periphery. A rubber tyred wheel fitted with a lever system to exert a load of 40 kgf. on the road wheel. An hopper unit fitted with drain cork for feeding emery powder over the road wheel. A water reservoir fitted with drain cork for feeding water into hopper. Suitable for operation on 220v, 50 Hz, single phase supply. Skid resistance tester, Specimen preparation moulds (14 nos are required) , silicon sand and air floated emery powder required as per IS 2386 (Part IV) are offered separately
LOS ANGELES ABRASION TESTING MACHINE - WITH PRESETTABLE DIGITAL COUNTER
As per IS:2386 - IV/ ASTM C131. Complete with revolution counter, G.I. Tray, 12 Nos. Abrasive charge and instruction manual. The machine is used tor testing crushed slag and crushed & uncrushed gravel for resistance to abrasion. The aim of the test is to find the percentage wear due to the relative rubbing action between the aggregates and steel balls used as abrasive charge. The oven-dried aggregates are weighed and rotated along with abrasive charge in the machine at 500 or 1000 revolutions and percentage of wear so found out is reported as Los Angeles abrasion value.
BUOYANCY BALANCE-IS:2386 (Part III)
For Water absorption and specific gravity test of aggregates. As per EN 12390-7, BS 1881:114, IS:2386 (Part III),ASTM C127 and C128: AASHTO T 85 and T 84
AGGREGATE IMPACT TESTING MACHINE - IS: 2386 (Part - IV).
Complete with a cylindrical cup, 102 mm dia X 50 mm depth, one measure 75 mm dia X 50 mm deep and a tamping rod of circular cross section 10 mm in diameter and 230 mm long, rounded at one end. AS PER IS: 2386 (Part - IV).

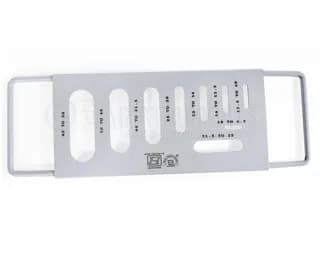

FLAKINESS GAUGE - ISI MARKED
Used to determine the Flakiness Index of the Aggregate. The aggregate particles are to be considered flaky, If their thickness is less than 0.6 of their nominal size.It consists of a frame with sliding panel having accurate slots of different standard width and length. The complete assembly is chrome plated or powder coated

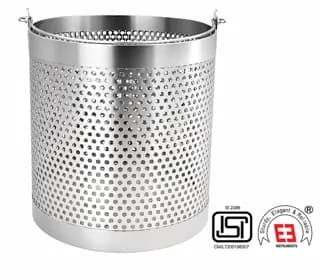

DENSITY BASKET - ISI MARKED - S.S. - 20 X 20 CM
A S.S.wire basket of not more than 6.3 mm mesh or a perforated container of convenient size. with wire hangers not thicker than one mm suspending it from the balance, as per IS:2386 (Part III)
METHYLENE BLUE TEST SET FOR AGGREGATE FINES
Methylene Blue Test for Aggregate Fines: AASHTO T 330 and ASTM C 837. The methylene blue test is used to identify the presence of clay minerals in aggregates, which can affect the quality of concrete and asphalt mixtures. The test measures the amount of methylene blue dye adsorbed by clay minerals present in aggregate fines, indicating the level of impurities.
AGGREGATE CRUSHING VALUE TEST APPARATUS
The Aggregate Crushing Value provides a relative measure of resistance of aggregate to crushing under a gradually applied compressive load. The oven dried and accurately weighed aggregates are subjected to crushing test on compression testing machine and weight of the resultant fines passing the specified IS sieve to the total weight of the sample expressed as a percentage is defined as Aggregate Crushing Value.
NOISE REDUCTION CABINET FOR LOS ANGELES ABRASION TESTING MACHINE
A noise reduction cabinet for a Los Angeles (LA) Abrasion Testing Machine is a specialized protective enclosure designed to house the machine during operation. Its primary functions are to significantly lower laboratory noise levels and ensure operator safety.

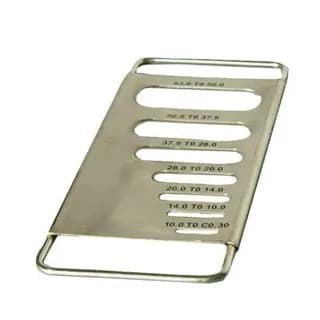

FLAKINESS INDEX SIEVE - BS 812-105.1
This sieve is used to determine whether the aggregate particle is flaky or not, that means it is to determine whether the thickness of the particle is less than 60% of its nominal size or not.
BULK DENSITY CYLINDRICAL METAL MEASURE
Used for determining the unit weight and voids in aggregates as per standard test methods. The apparatus is made from thick gauge mild steel, ensuring rigidity and shape retention. Features a water-tight construction, smooth interior finish, and precision machining for accurate measurements. Fitted with handles for easy handling.
STRIKE OFF PLATE FOR BULK DENSITY CYLINDRICAL METAL MEASURE
Strike Off Plate for Bulk Density Cylindrical Metal Measure is used to level and remove excess material from the top of a cylindrical measure during bulk density testing of aggregates. It ensures accurate volume measurement and reliable test results in accordance with relevant testing standards.

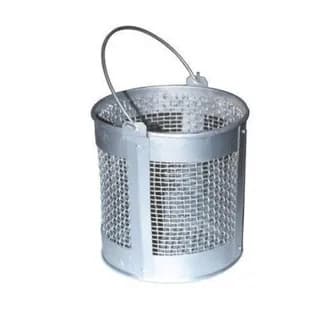

DENSITY BASKET - G.I. 20 X 20 CM
Size : 20 cm diameter x 20 cm height Fitted with galvanized wire mesh with handle. As Per IS : 2386 - Part-III, Method
PYCNOMETER BOTTLE
Pycnometer Bottle is used for determining the specific gravity and density of fine-grained soils, aggregates, powders, and other materials. It provides accurate volume measurements for laboratory testing and quality control applications in accordance with relevant standards.
DENSITY BASKET
A S.S.wire basket of not more than 6.3 mm mesh or a perforated container of convenient size. with wire hangers not thicker than one mm suspending it from the balance, as per IS:2386 (Part III)

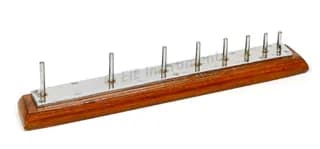

LENGTH GAUGE
Used to determine the Elongation Index of the Aggregate. Aggregate particles are considered elongated when their length is more than 1.8 of the nominal size.It consists of a hard wooden base with vertically mounted metal studs as specified in the IS.
BALLAST SIEVE
Ballast Sieve is used for grading and particle size analysis of railway ballast and coarse aggregates. It helps determine the size distribution of materials to ensure compliance with specified standards for construction and railway engineering applications.
DISC PULVERIZER
Disc pulverizer with L&T Starter is a disc type grinder, designed to grind virtually any material to produce a fine mesh up 70 mesh sample in one operation.
PROPORTIONAL CALIPER
Proportional Caliper is used to measure the dimensions and shape characteristics of aggregates, including flakiness and elongation. It provides accurate measurements for assessing aggregate quality and compliance with standard testing requirements.
LABORATORY PULVERIZER
Laboratory pulverizer with L&T Starter is a disc type grinder, designed to grind virtually any material to produce a fine mesh sample in one operation.

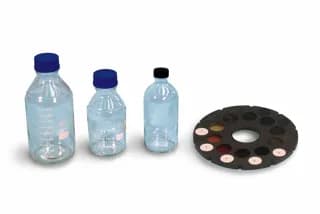

KIT FOR ESTIMATION OF ORGANIC IMPURITIES IN FINE AGGREGATES
The estimation of organic impurities in fine aggregates is critical since such impurities can adversely affect the properties of concrete. The test determines the presence of organic materials, mainly by colorimetric comparison of a solution of fine aggregate with a reference color standard.

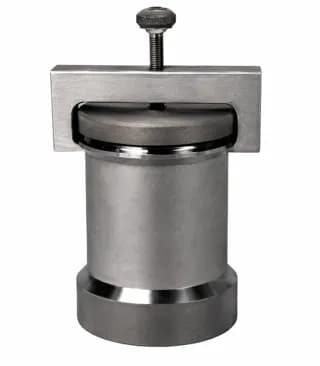

REACTION CONTAINER - IS 2386 (PART VII)
The reaction container specified in IS 2386 Part VII and ASTM C289 is used for assessing the potential alkali reactivity of aggregates by measuring their reaction with a sodium hydroxide solution. Made of stainless steel, 50 to 75 ml. capacity, fitted with air tight cover.

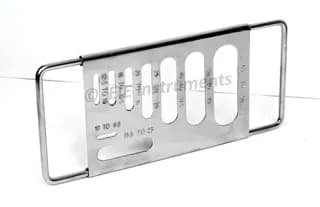

FLAKINESS GAUGE - COMPLETE S.S. (BS - 812)
Used to determine the percentage of particles in a coarse aggregate material that have a thickness (smallest dimension) of less than one-half of the nominal size. Particle is flaky when its thickness (smallest dimension) is less than 0.6 of the mid-size of the sieve fraction.

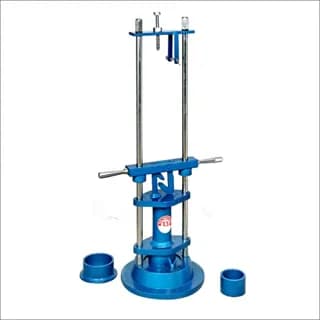

AGGREGATE IMPACT TESTING MACHINE WITH BLOW COUNTER (BS - 812)-
Complies with following International Standards : NF P18-574, BS 812. Purpose - For determining the aggregate impact value of coarse aggregate. This test method provides a relative measure of the resistance of an aggregate to sudden shock or impact.
SHAPE TEST APPARATUS-
Consisting of Length gauge and Flakiness Gauge sdfor shape test of aggregate
LENGTH GAUGE - (BS - 812)
This instrument is used to determine the elongation index of aggregates. Particle is elongated when its length (longest dimension) is more than 1.8 of the midsize of the sieve fraction
FLAKINESS GAUGE - COMPLETE S.S.
Used to determine the percentage of particles in a coarse aggregate material that have a thickness (smallest dimension) of less than one-half of the nominal size. Particle is flaky when its thickness (smallest dimension) is less than 0.6 of the mid-size of the sieve fraction.

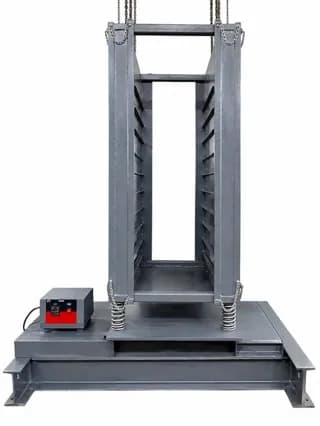

SIEVE SHAKER - FOR RECTANGULAR SIEVES - 45.7 X 66 X 7.5 CM
The body and the base of Sieve Shaking Machine is made of mild steel and the top rotating plate is made of mild steel / plate with arrangement for fixing 10 Nos. test sieves 45.7 cm (L) x 66 cm (W) x 7.5 cm (H) with rigid clamp. Supplied Without Sieves.
