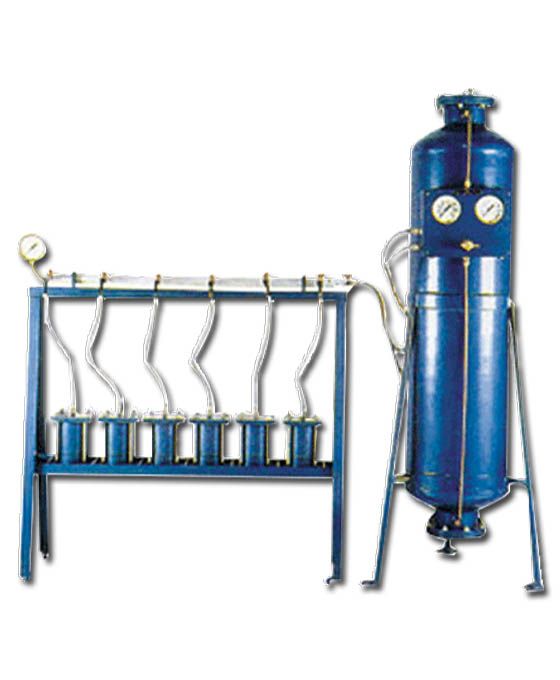

CEMENT MORTAR PERMEABILITY APPARATUS

Model Number : TM-138-6

Primarily used for testing of integral waterproofing compounds and determination of permeability of cement mortar as per IS 1727 and IS 2645. The apparatus is of six-cell design, suitable for testing 100 mm dia × 50 mm high specimens and is supplied complete with 6 Nos. brass permeability cells, water pressure chamber, six-way distribution system, armoured heavy-duty rubber hose, standard compacting rammer of 500 g, suitable stands for mounting the permeability cells, pressure gauge, pressure regulator and necessary connecting accessories. A suitable air compressor with 60 litre tank capacity, capable of developing pressure up to 7 kg/cm², is also provided for application of the required test pressure.
