CEMENT MORTAR PERMEABILITY APPARATUS - SIX CELL

Model Number : TM-138-6

Primarily used for testing of integral waterproofing compounds and determination of permeability of cement mortar as per IS 1727 and IS 2645. The apparatus is of six-cell design, suitable for testing 100 mm dia × 50 mm high specimens and is supplied complete with 6 Nos. brass permeability cells, water pressure chamber, six-way distribution system, armoured heavy-duty rubber hose, standard compacting rammer of 500 g, suitable stands for mounting the permeability cells, pressure gauge, pressure regulator and necessary connecting accessories. A suitable air compressor with 60 litre tank capacity, capable of developing pressure up to 7 kg/cm², is also provided for application of the required test pressure.

Compliance Standards:

As per IS:1727 and IS:2645-2003.(R.A.2022)

Description:

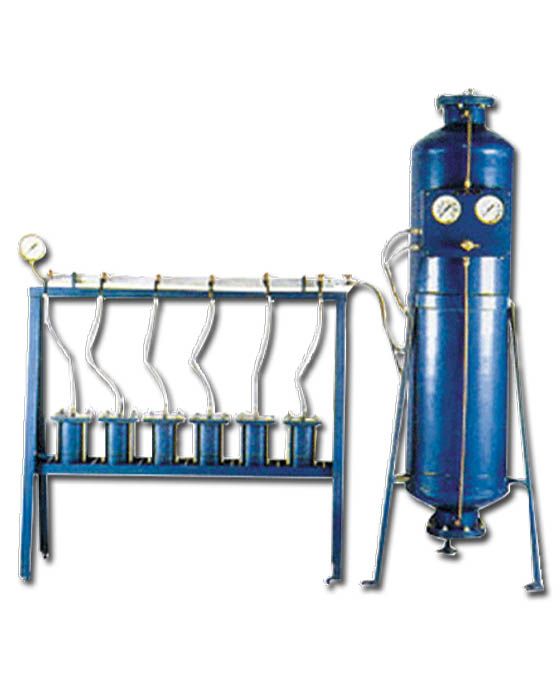

The instrument consists of 6 Nos. of BRASS permeability cell - which consists of a bottom plate, specimen cell, water cell or collar, top plate and four tension rod with nuts to clamp down mould and collar between bottom plate and top plate. The bottom plate has an outlet for percolating water and is recessed to hold the mould in place with a washer in between. The top plate has an inlet for water, a connector for the application of pressure to the water in the cell.

The pressure chamber provided is a Stainless steel cylinder. This is provided or the top with a water inlet a Schrader valve for application of pressure, a pressure regulator valve fitted with two pressure gauges. The two pressure gauges have a range of 0- 7 kg/cm2, one connected to the pressure chamber and the other to measure the permeability cell pressure. A valve is provided on bottom of pressure chamber for drainage and release of pressure also.

A pressure hose is provided to connect the pressure chamber to the cell assembly. A stand is provided to sit the permeability cell assembly.

Supplied with Air compressor. An air compressor is essential to conduct the test which can develop a pressure of 7 kg/cm2.

Other Items required for the test (available at extra cost)

  1. Humidity Chamber

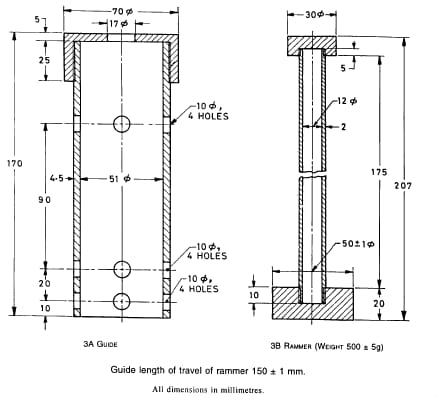

  2. Standard Rammer

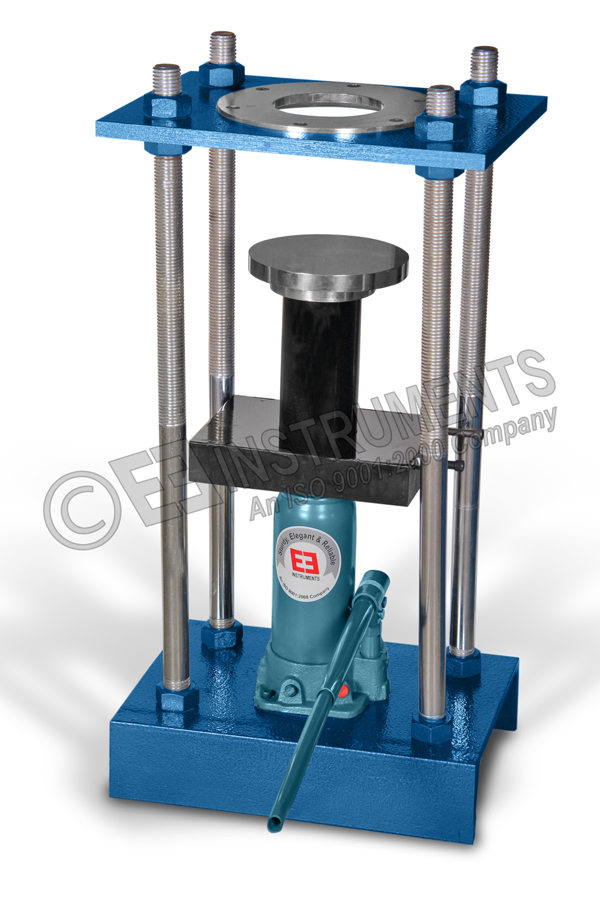

  3. Mould Extractor
  4. Standard Sand (2mm passing and retained on 75 micron sieve) as per IS 650
  5. Gauging trowel
  6. Mixing Tray 100 X 100 cm
  7. Mortar Mixer
  8. 12mm dia steel rod
  9. Curing tank for curing @27 deg C
  10. Weighing Balance 1 kg X 0.01 gm
  11. Flow Table as per IS:5512
