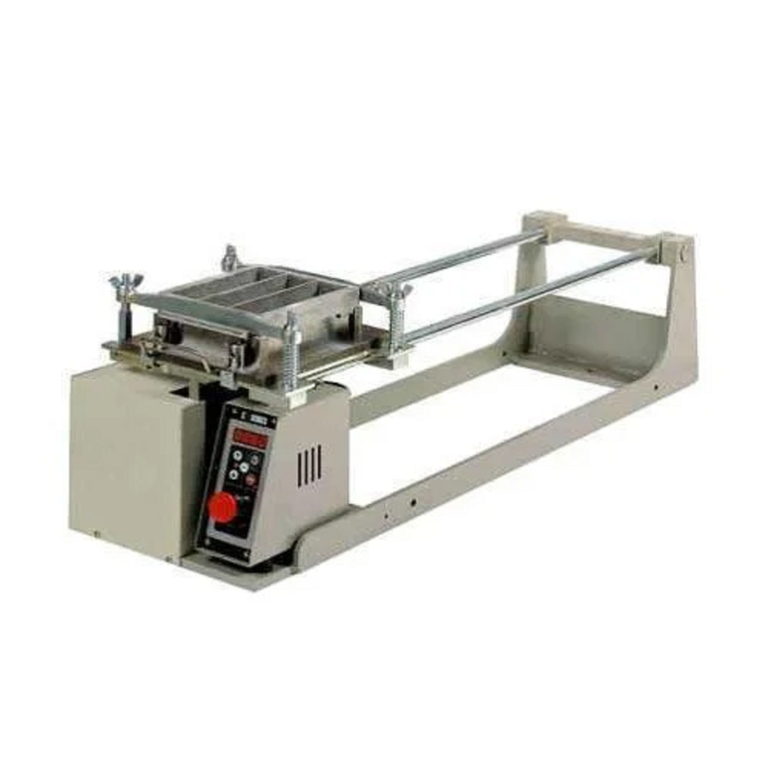

JOLTING APPARATUS (VIBRATING TABLE FOR CEMENT MORTAR)

JOLTING APPARATUS (VIBRATING TABLE FOR CEMENT MORTAR)

Model Number : TM-085

For making standard rectangular specimens of 40 x 40 x 160mm. Of portland and pozzolana cement mortar for determining the transverse strength, as per IS:10078. Prism moulds, feed hopper, scrapers and glass plate are not included and have to be ordered separately.

Compliance with following International Standards:

IS 10078 :1982, EN 196‑1, EN ISO 679

Applications:

Used to compact rectangular 40 x 40 x 160mm of port land and pozzolana cement mortar prism specimens for determining the transverse strength.

Salient Features:

  1. Rapid mould lock and release system
  2. Rigid structure assuring stability and no distortion
  3. Easy to operate
  4. Aesthetic outer appearance
  5. Powder coated body

Construction Details:

  1. The jolting apparatus consists of rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table.
  2. There is a projecting lug with a plane face on the lower face of the table beneath which is a stop with a rounded upper surface.
  3. The table can be raised and allowed to fall freely by a cam which is connected to a motor. The cam rotates at a rate of 60 rev/min.
  4. A stroke counter fitted with micro‑switch is provided which stops the machine after 60 jolts.
  5. Locating pins are provided for mounting the moulds compartments on the table.

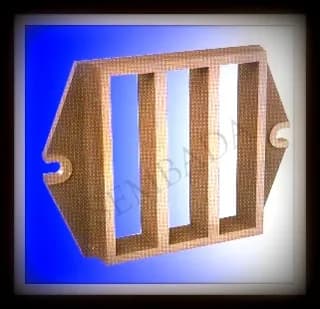

  6. The mould surrounded by the hopper can be clamped rigidly to the table.

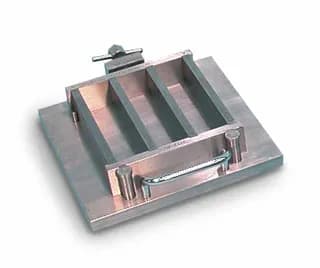

Note : Prism moulds, feed hopper, scrapers and glass plate are not included and have to be ordered separately.
