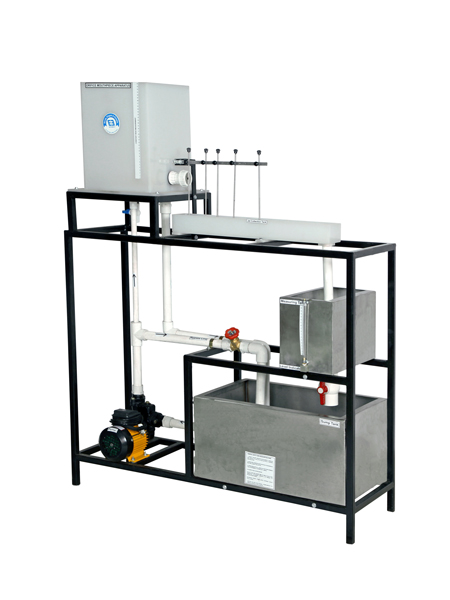

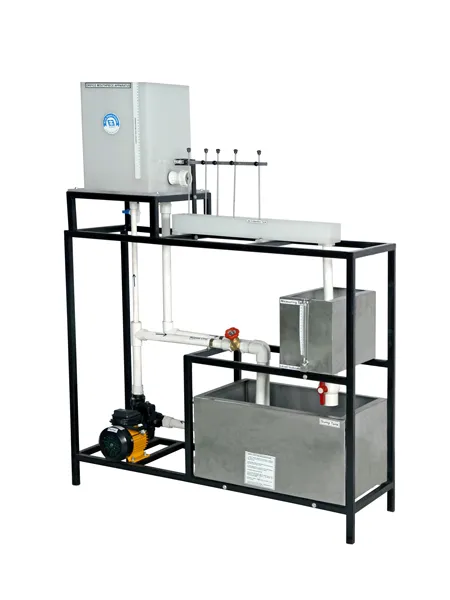

ORIFICE AND MOUTHPIECE APPARATUS WITH S.S. TANK - VIPL-FM-7014-

ORIFICE AND MOUTHPIECE APPARATUS WITH S.S. TANK - VIPL-FM-7014-

Model Number : EIE-FM-015

An orifice is an opening made in the side or bottom of tank, having a closed perimeter, through which the fluid may be discharged. A mouthpiece is a short tube fitted to a same size of circular opening provided in a tank so that fluid may discharge through it. Orifice and mouthpiece are used to measure the rate of flow of liquid. Detailed Specification as follows:

The apparatus is designed to measure the co‑efficient of discharge of orifice & mouthpiece. The trainer is self‑sufficient unit to study the calibration & characteristics of orifice & mouthpieces. The calibration of these meters can be studied by comparing calculated flow with actual flow measured in measuring tank.

&

Brief Construction Details :

  • The setup consists of sump tank, pump, constant head tank & measuring tank.
  • The orifice or mouthpiece can be interchanged & experiment can be performed.
  • Constant head tank is fitted with discharge fixture,  where both orifice and mouthpiece can be fitted.
  • A jet collecting tank collects the discharge and X‑Y  Trajectory probes Measures coordinates of jet.
  • Flow & level of water in constant head tank can be  adjusted by flow control valve, so that number of readings can be taken.
  • Test orifices of different diameters & mouthpieces of  different shapes are supplied with the system.
  • Thus Cd, Cc, & Cv of orifice as well as Cd of mouthpiece can be determined.
  • The entire system is mounted on a sturdy MS frame.
