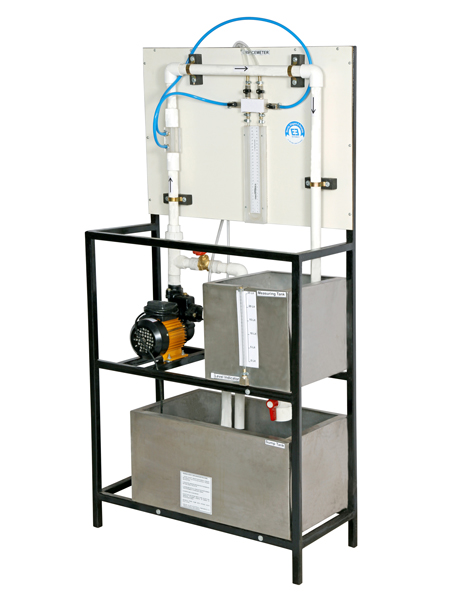

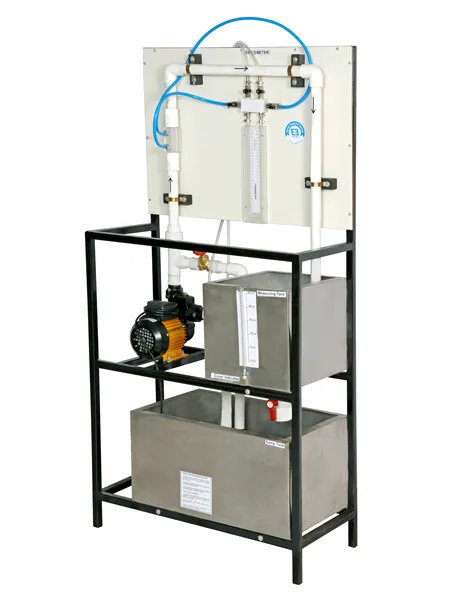

ORIFICE METER APPARATUS WITH SS TANK-VIPL-FM-7009-
Model Number : EIE-FM-009
Purpose: An orifice meter is a differential pressure flow meter which reduces the flow area using an orifice plate. Orifice and Venturimeter are used to measure the rate of flow of liquid. The apparatus is designed to measure the co efficient of discharge (Cd) using orifice meter. The trainer is self sufficient unit to study the calibration & characteristics of the orifice meter. supplied with manometer fluid.
Construction Details :
- The setup consists of sump tank, pump, orifice meter & measuring tank.
- The entire system is mounted on a sturdy MS frame.
- The apparatus consists of a pipeline containing a Orifice meter.
- The pressure tapings from the Orifice meter to diff. manometer to measure pressure difference is provided.
- By operating the valves, provided at the downstream side, the flow can be regulated.
- Present set‑up is self‑contained water re‑circulating unit.
- Flow control valve and by‑pass valve are fitted in water line to conduct the experiment on different flow rates.
- Flow rate of water is measured with the help of measuring tank and stopwatch.
- Piping with necessary Valves and Fittings
- Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost
- Detailed Technical Manual supplied. However, On‑site Training at extra cost
- supplied with manometer fluid.
| Box Dimensions | 1000 x 500 x 1000 mm |
|---|---|
| U tube manometer | 150 0 150 (Mercury filled) |
| Orifice Diameter | 16 mm |
| MOC of Orifice meter | Transparent Perspex |
| Volumetric tank capacity | 48 liters |
| MOC of Volumetric tank | SS 304 powder coated |
| Sump tank capacity | 75 liters |
| MOC of Sump tank | SS 304 powder coated |
| Circulating Pump | Monoblock type, 0 60 liter/min, Motor 0.5 HP |
