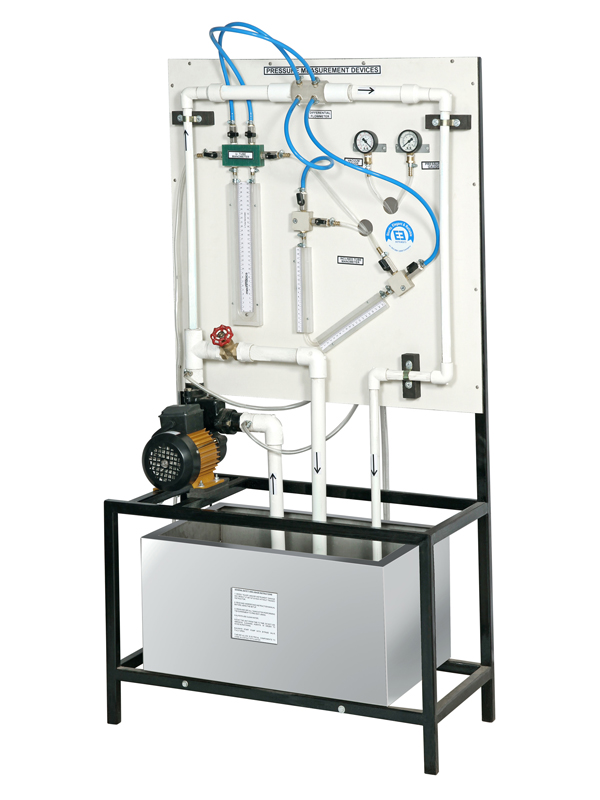

PRESSURE MEASUREMENT APPARATUS WITH S.S. TANK-VIPL-FM-7015
Model Number : EIE-FM-014
Detailed Specification please refer after commercial part. with manometer fluid.
This apparatus is designed to introduce students to two basic types of pressure measurement devices:
- U Tube Manometer
- Inclined U Tube Manometer
- Vacuum Gauge
- Pressure Gauge
Specifications:
- Orifice meter 16mm throat (acrylic)
- Piping with necessary Valves and Fittings
- Detailed Technical Manual
- with manometer fluid.
| Overall Dimensions | 1000 X 500 X 1500 (L X W X H) mm |
|---|---|
| Sump Tank | 75 Ltrs S.S.304, powder coated |
| U Tube manometer | 150-0-150 (Mercury filled) |
| Inclined Tube Manometer | 200-0-200 Inclined Limb (Mercury Filled) |
| Bourdon Type Pressure Gauge | (0 2 kg/cm2) |
| Bourdon Type Vaccum Gauge | (0 760mm/Hg) |
| Weight (Approx.) | 70 kg |
