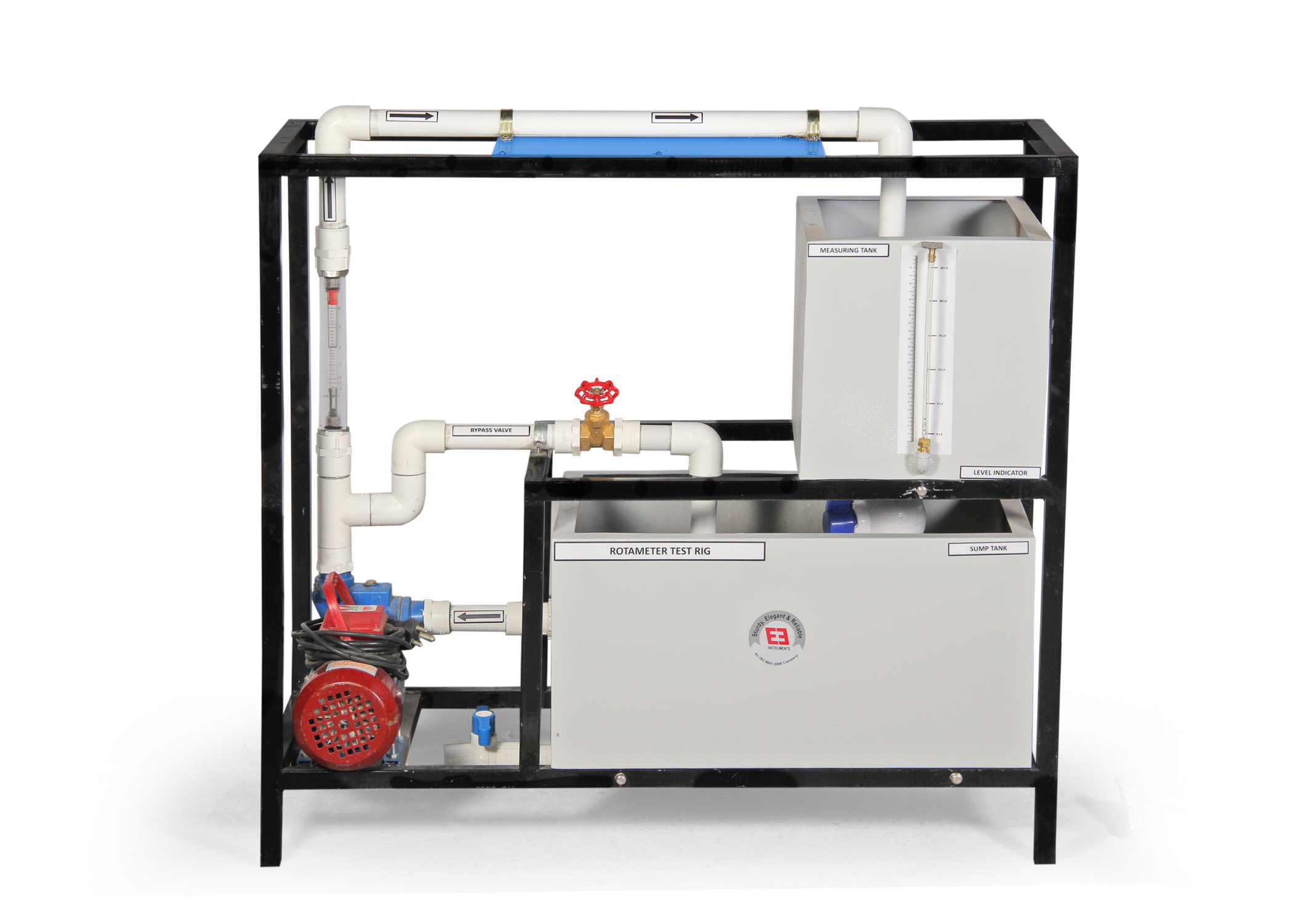

ROTAMETER TEST RIG WITH SS TANK-VIPL-FM-7018
Model Number : EIE-FM-011
Detailed Specification as follows.
Flow meter is a device that measures the rate of flow or quantity of a moving fluid in an open or closed conduit. The measurement of water flow rate is an important topic in the study of fluid dynamics.
Construction Details :
A flow control valve permits variation of flow rate through the circuit. The complete unit comprises of a test bench with sump tank & measuring tank. The exterior body of the unit is powder coated in attractive shades.
- Piping with necessary Valves and Fittings
- Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost
- Detailed Technical Manual supplied However,On‑site Training at extra cost.
| Box Dimensions | 1000 x 500 x 1000 mm |
|---|---|
| Variable Area Meter | 0 50 LPM |
| Sump tank capacity | 75 liters |
| MOC of sump tank SS | S.S.304 powder coated |
| Measuring tank cap | 48 liters |
| MOC of Measuring Tank | SS - 304 powder coated |
| Pump | Monoblock type, 0 60 liter/min, Motor 0.5 HP |
