VENTURIMETER APPARATUS WITH SS TANK-VIPL-FM-7008

VENTURIMETER APPARATUS WITH SS TANK-VIPL-FM-7008

Model Number : EIE-FM-010

Description of item is as per follow. Note on Manometer Fluid (Mercury): Please note that Mercury is a precious/restricted heavy metal and is not included in the standard scope of supply. It is required to fill the U-Tube and Inclined Tube Manometers for experimental operation. Mercury is available at an extra cost of ₹15,000/- + GST (as applicable).

Purpose :

A Venturi meter is a tube with a constricted throat that increases velocity and decreases pressure. Venturi meters are used for measuring the flow rate of both compressible and incompressible fluids in a pipeline. The apparatus is designed to measure the co-efficient of discharge of Venturimeter. The trainer is self-sufficient unit to study the calibration characteristics of venturimeter.



Construction Details :

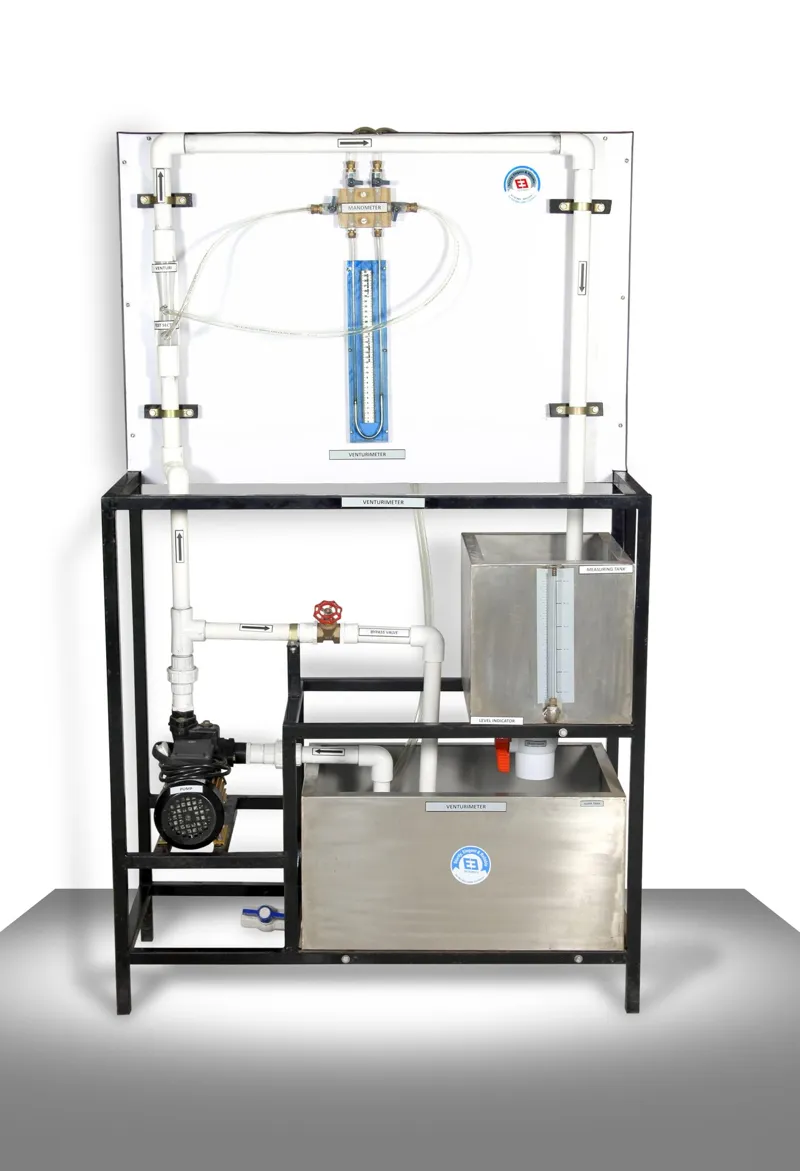

  • The setup consists of sump tank, pump, Venturi meter &  measuring tank.
  • The entire system is mounted on a sturdy MS frame.
  • The apparatus consists of a pipeline containing Venturimeter.
  • The pressure tapings from the Venturimeter to diff. manometer to measure pressure difference is provided.
  • By operating the valves, provided at the downstream side,  the flow can be regulated.
  • Present set-up is self-contained water re-circulating unit.
  • Flow control valve and by-pass valve are fitted in water  line to conduct the experiment on different flow rates.
  • Flow rate of water is measured with the help of measuring tank and stopwatch.



Technical Specifications :

  • Piping with necessary Valves and Fittings
  • Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost
  • Detailed Technical Manual supplied. However, On-site Training at extra cost
