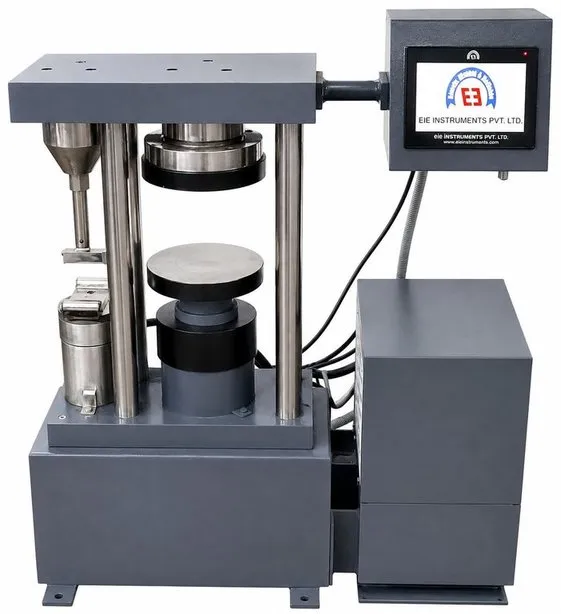

AUTOMATIC COMPRESSION CUM FLEXURAL TESTING MACHINE - FOR CEMENT - EN 196-

Compliance With Following International Standards :

EN 12390-4, ASTM C39, AASHTO T22, IS : 14858 (2000), BS : 1881, EN 1015, ASTM C109

Salient Features :

1. Works on 220-240 Volts, 50-60 Hz, Single phase, AC Supply.
2. Calibrated with an accuracy of ± 1%.
3. High accuracy and test repeatability.
4. ·Automatic Pace rate control
5. Automatic stress calculation and display
6. Automatic control unit for compression hydraulic testing frames
7. With the rapid-change platen system, the operator can quickly and easily mount a wide range of accessories for cylinder and cubes.
8. The test execution confirms to International Standards can be easily proved.
9. Aesthetic Design and attractive outer appearance
10. Powder coated body

Technical Specifications :

1. Automatic double chamber compression machine
2. 15/300 kN capacity for compression and flexural tests on cement, mortar, resin and other materials
3. Conforming to EN 196-1, 1015-11, ASTM C109, C348, C349 using the suitable accessories.
4. High accuracy load cells for load measurement
5. Compression platens 165mm diameter
6. automatic control system
7. Large touch screen display
8. LAN port for PC connection and USB port for easy data storage on pen-drive
9. Advanced electronics ensuring superior precision and high stability - effective resolution
10. Daylights                                   : Horizontal 220mm, vertical 200/200mm
11. Piston travel                              : 30/50mm
12. Limit switch                               : Preventing piston over travel
13. Load measurement accuracy   : class 1 to EN 12390-4
14. Class A to ASTM E74 starting from 30kN of full scale for 300kN chamber and from 1.5kN for 15kN chamber.
15. Special calibration from 3kN for 300kN chamber and from 0.5kN for 15kN chamber
16. Supplied complete with traceable calibration certificate for load measurement accuracy
17. Operates on  : 230V/50-60Hz/1Ph

Automatic Test Execution Description :

Once the machine has been switched on and the specimen is positioned and centered, the only required operations to be carried out by an operator are:

1. Set test parameters - including load rate
2. Press the start button
3. Open the Oil delivery valve
4. The machine automatically: starts the rapid approach; switches to the test speed once the specimen comes  into contact with the upper platen; automatically release the pressure upon specimen failure
5. Save the test including data results and load-time graph (Optional)
