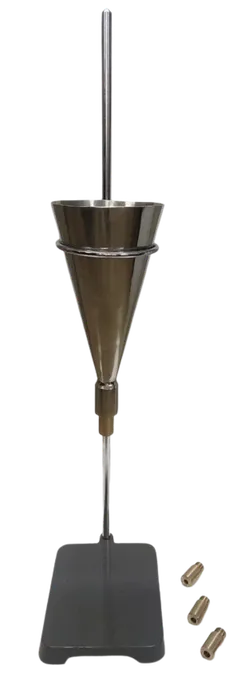

FLOW CONE APPARATUS-EN 445-FOR MORTAR, MUD AND GROUT
Model Number : EIE-7021
The flow cone apparatus is used to determine the fluidity and workability of grout, particularly for prestressing ducts in post-tensioned structures. The test measures the time required for a specified volume of grout to flow through an orifice of a standardized cone. The measured flow time helps assess the consistency and suitability of the grout for application. Made of Stainless Steel 304. Supplied with 4 interchangeable (8, 9, 10 and 11 mm diameter) nozzles with fitting bush. Interchangeable nozzle 12.7 mm and 15mm available at Extra Cost.
Compliance Standards
EN 445, NF P18-358, NF P18-507
Application
Used for determining the flow properties of grouts, mortars, muds and other fluid materials. EN 445 & NF P18-358 use a 10 mm orifice for testing standard grout flow time. NF P18-507 specifies a 15 mm orifice, likely to accommodate thicker grouts or different testing conditions. The selection of the orifice size depends on the type of grout being tested and the flowability range expected in the application.
Details

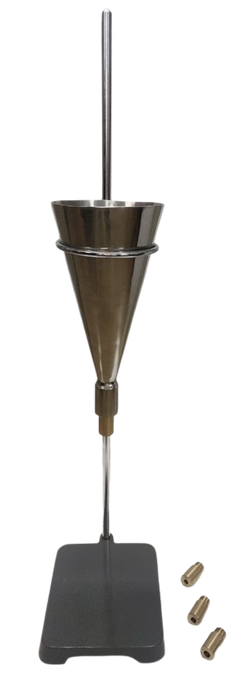

- Flow Cone Apparatus consists of a stainless steel cone with upper diameter of 150 mm and height of 280 mm
- Fitted with 150 mm dia sieve with 1.5 mm opening for the upper cone
- Supplied with 4 interchangeable (8, 9, 10 and 11 mm diameter) nozzles with fitting bush
- 1 liter capacity cup
Supplied complete with...
- Stand
- Flow Cone
- Sieve 1.5 mm, 150 mm dia
- Nozzle 8, 9, 10 and 11 mm
- Cup 1 liter capacity
- Fitting Bush
Interchangeable nozzle 12.7 mm and 15mm available at Extra Cost.
| Cone Top Diameter | 155 mm |
|---|---|
| Total Lenght | 290 mm |
| Capacity | 1700 CC |
| Weight | 10 Kg Approx. |
