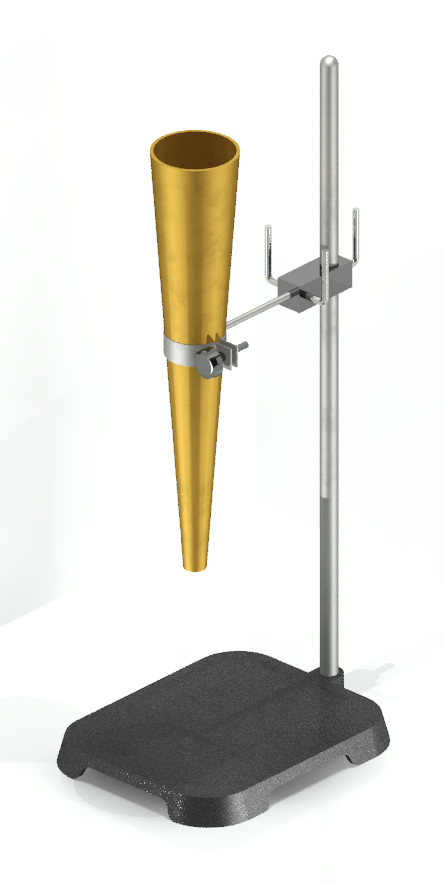

J14 FUNNEL WITH STAND - WITH MEASURING CYLINDER

J14 FUNNEL WITH STAND - WITH MEASURING CYLINDER

Model Number : EIE-7018-J-14

The J14 Funnel is used for measuring the flowability of grouts, mortars, and other fluid materials. It is similar to flow cone tests but typically designed for more fluid materials, especially in tunneling, grouting, and construction applications. As per EN 445, EN 934-6 , NF P18-507, JIS A 6204

As per EN 445, EN 934-6 , NF P18-507, JIS A 6204.

Specification :

  1. Measures efflux time (time for a fixed volume of grout to pass through the funnel).
  2. Typically used in high-fluidity grouts where flow cone methods may not be sensitive enough.
  3. Often used in tunneling and underground construction applications.
  4. The orifice diameter of J14 Funnels may vary depending on the standard, but it is usually around 14 mm.
  5. Funnel made of Brass
  6. Stand made of Mild steel / Cast Iron
  7. Supplied with a Plastic Measuring Cylinder
  8. Top Inner diameter : 70 ± 1 mm,
  9. Bottom Inner Diameter : 14 ± 0.3mm,
  10. Height : 392mm
  11. Stop watch available at extra cost.
