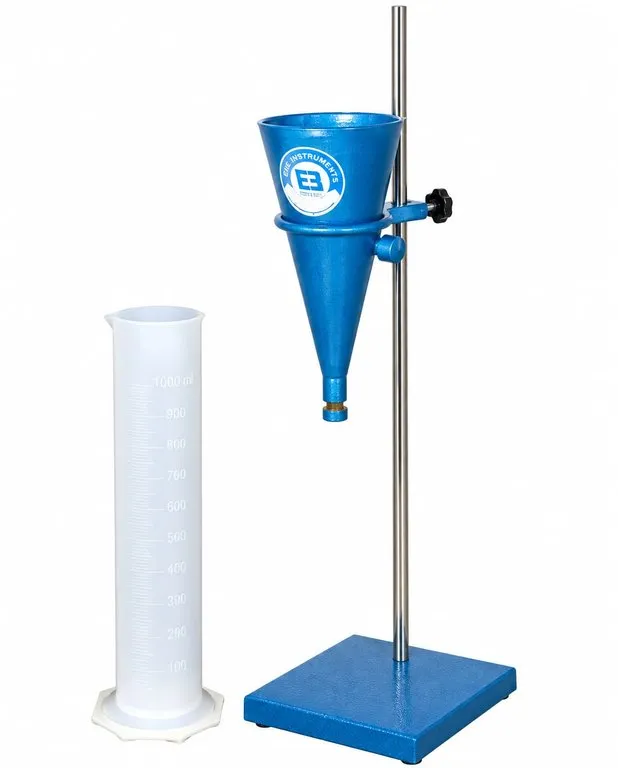

MARSH CONE FUNNEL - WITH STAND AS PER IS 14343
Model Number : EIE-7018
Detailed Specification as follows: This cone is used to find out viscosity of slurry and like material. The marsh cone is 6 inch(150 mm) in diameter at the top and 12 inch(300 mm) long, and tapers to join a tube 2 inch long and 5 mm inside dia. The capacity of the funnel is 2000 cc. the top of the cone has a screen with 1.5 mm opening for screening out lumps.Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material. Supplied without stop watch
This cone is used to find out viscosity of slurry and like material. The marsh cone is 6 inch(150 mm) in diameter at the top and 12 inch(300 mm) long, and tapers to join a tube 2 inch long and 5 mm inside dia.top of the cone has a screen with 1.5 mm opening for screening out lumps. The capacity of the funnel is 2000 cc. Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material. Supplied without stop watch
| Overall Dimensions | 280 X 210 X 930 (L X W X D) mm |
|---|---|
| Net weight (in kg) | 7 kg |
