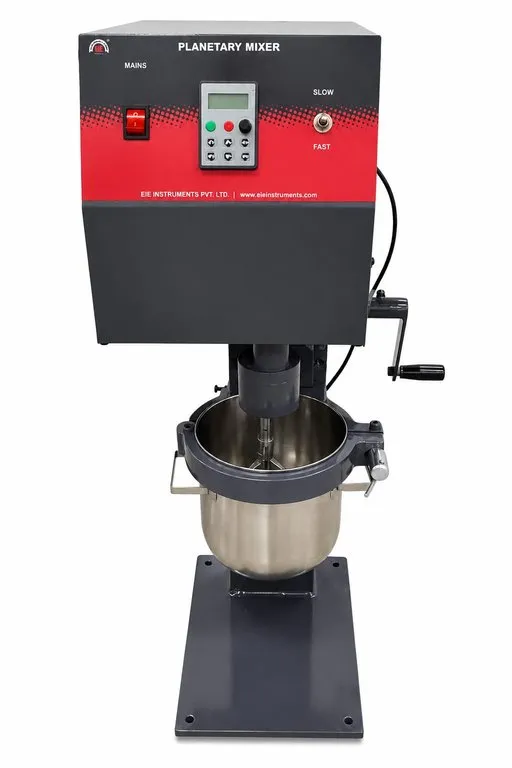

MORTAR MIXER WITH DIGITAL RPM INDICATOR - 4.75 LTR
Model Number : TM-121D
The instrument is specially designed to prepare cement mortar for Strength Determination. It is used for mixing cement pastes, mortars and pozzolanas. It can also be used for uniform mixing of soils with additives such as lime, cement, etc. The machine is advance version that requited no changing of the gear. It will also show the current rpm.
Compliance with following International Standards:
EN 196‑1 & EN 196‑3, IS : 4031, IS 10890, IS : 1727, ASTM C451
Construction details:
- Compact and tactful design
- Aesthetic Appearance
- Exterior body powder coated in attractive shades
- Paddle and bowl made of Stainless Steel Material
- An epicyclical type stainless steel paddle imparts both planetary and revolving motion.
- Stainless steel bowl is fitted with handle - Nominal capacity 4.75 Ltrs
- Stainless Steel Handle is fitted with lid made of non‑absorbing material and is attacked by cement, masonry cement, cement pozzolana mixture or lime pozzolana mixture.
- Mixer operates on two different speeds. Mixer blade has low speed of (140 ± 5 rpm) and medium speed of (285 ± 10 rpm).
- It also has a planetary movement of (62 ± 5 rpm) in low range and planetary movement of (125 ± 10 rpm) in medium range.
- The mixing paddle has a planetary motion and is driven by a motor
- Suitable for operation on 230 Volts, 50 Hz, single phase, AC Supply
- No need to change gear
- Speed will be changed by pressing simple button
- Machine will display the running RPM
- Simple to operate
| Dimension | 450 X 510 X 920 (L X W X D) mm |
|---|---|
| Weight (Approx) | 68 kg |
