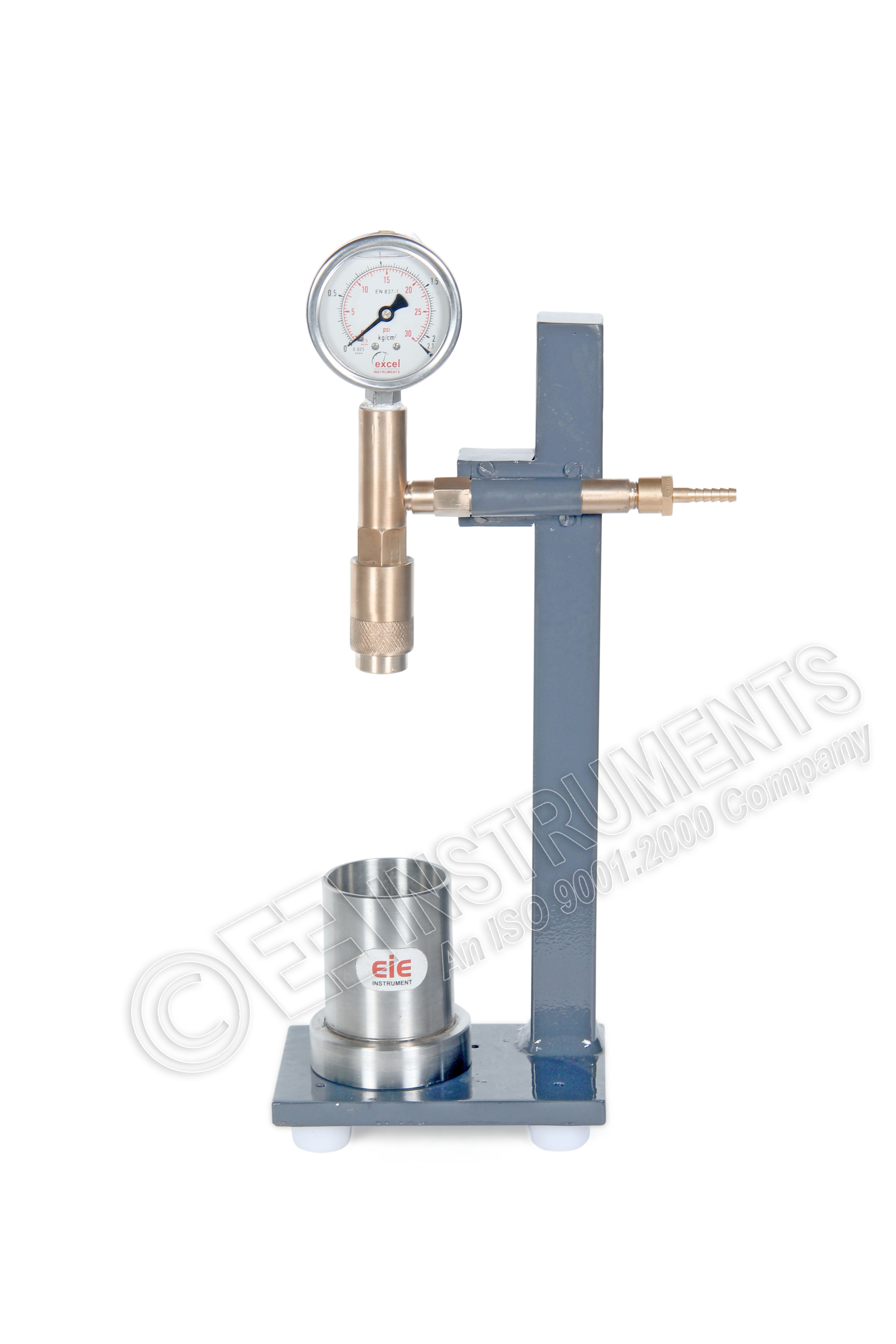

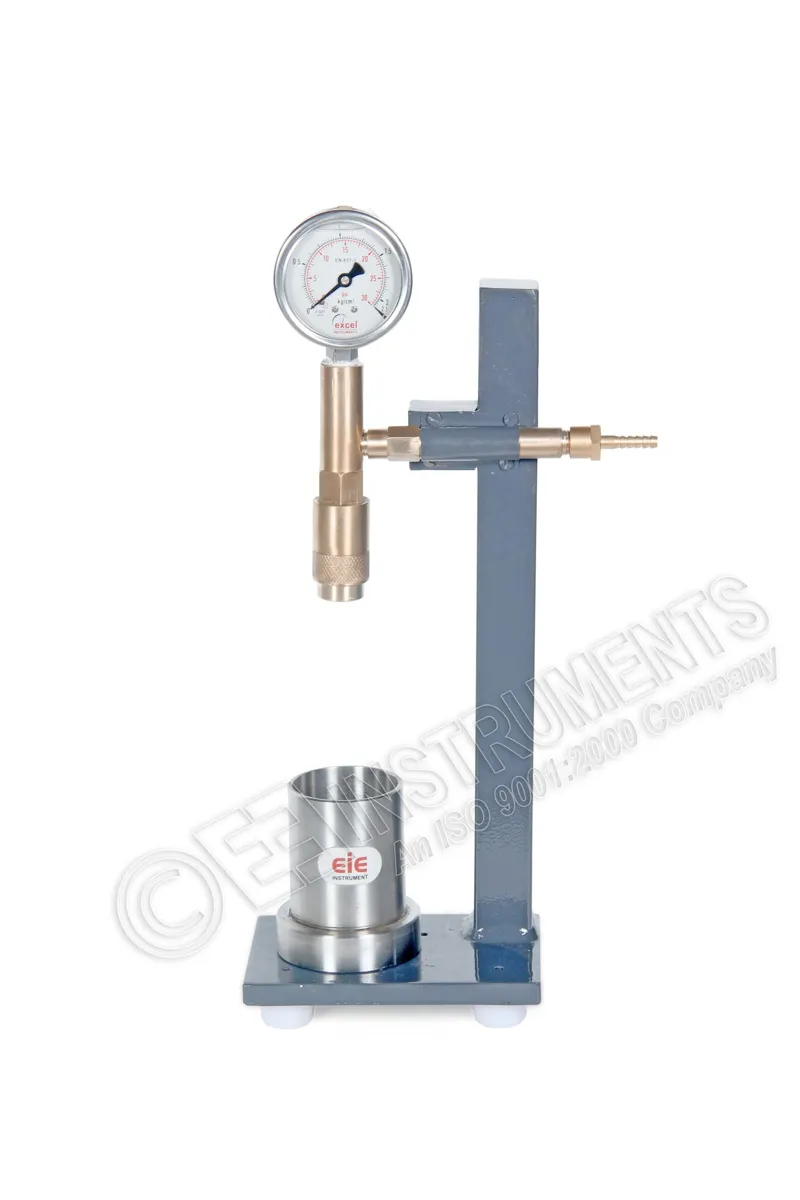

WET SIEVING APPARATUS - IS : 4031 (PART-15)

Wet Sieving Apparatus is used for determining the fineness of fly ash. As per IS : 4031 (Part-15).

Applications:

Wet Sieving Apparatus is used for determining the fineness of fly ash.

Description

Supplied with Pressure Gauge, Spray Nozzle fitting to attach the Apparatus to a Water Source.

Details:

The apparatus comprises of following parts and accessories

1. A special stainless steel sieve, 0.045 mm opening, No.325 stainless steel wire cloth. The frame is 50± 5 mm diameter, and 75 ± 5 mm deep from rim to cloth.
2. A spray nozzle Ø 17.5 mm diameter with 17 holes, Ø 0.5 mm oriented and spaced to conform to the standards.
3. Supplied complete with a pressure gauge of Ø 80 mm diameter and fittings for connection to the water supply.
4. Analytical weighing Balance available separately
