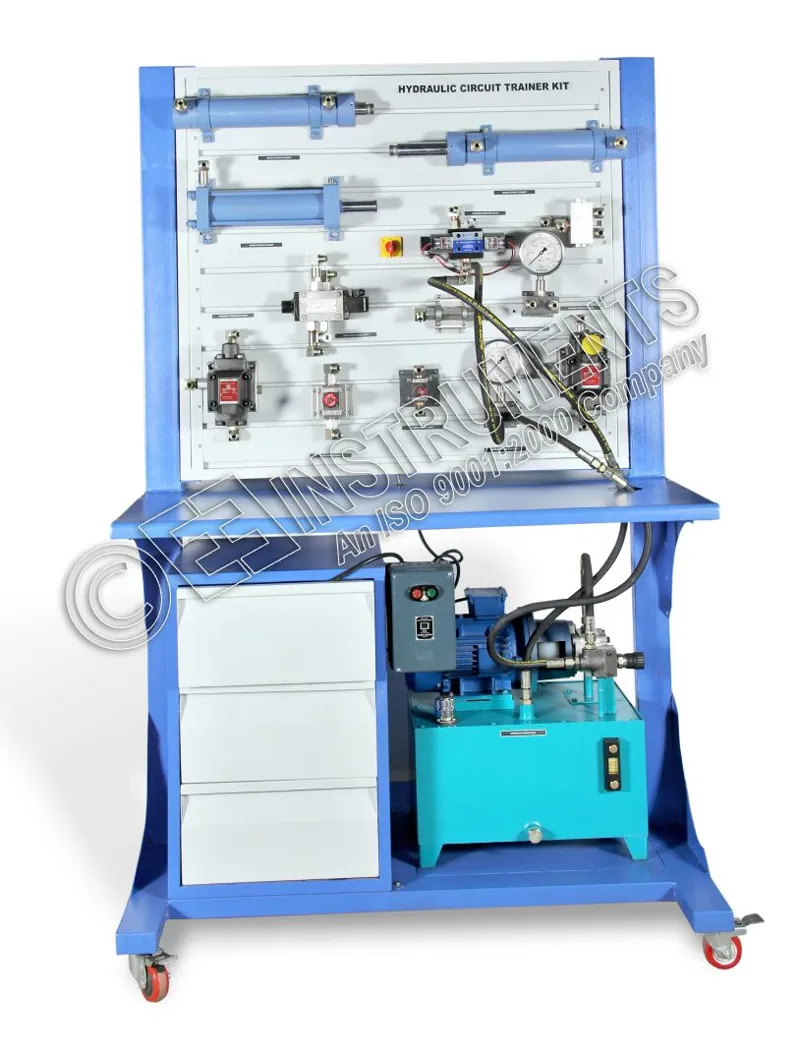

HYDRAULIC CIRCUIT TRAINER UNIT-
Detailed Specification as mention in following page.
Experiments:
- Study of 4/3 way Tandem Center D.C.V. .
- Study of Pressure Reducing Valve
- Study of Linear Actuator.
- Study of Flow Control Valve.
- Study of Meter ‑ In Flow Control Circuit.
- Study of Meter ‑ Out Flow control Circuit.
- Study of Bleed ‑ Off Flow control circuit.
- Study of Pressure sequence valve.
The Oil Hydraulic Circuit Trainer consists of following components and accessories for carrying out the study of the various hydraulic circuits. .All the Components & accessories are mounted on a M.S. fabricated frame (Powder Coated)
| Power Pack | |
|---|---|
| Oil Sump Capacity | 40 liters (35 liters hydraulic oil supplied) |
| Pump | Gear Pump, 10 LPM capacity, 30 Bar pressure |
| Motor | 2 HP, 3-phase AC Induction motor (IS Standard) |
| Suction Strainer | 1 No. |
| Air Breather | 1 No. |
| Pressure gauge | 0–100 Kg/cm², 4 |
| Quick Release Coupling | Double check valve type |
| Direction Control Valve | 4/3 Way Tandem Center Type, Hand Lever Operated |
| Pressure Reducing Valve | 1 No. |
| Pressure Reducing Valve | 1 No. |
| Direct Acting Pressure Relief Valve | 1 No. |
| Non-Return Valve | Single Check Type |
| Flow control valve | Inline Type, 1 No. |
| Double Acting Cylinder | Bore Diameter: 65 mm (approx.), Stroke: 100 mm, 1 No. |
| Single Acting Cylinder | Bore Diameter: 65 mm (approx.), Stroke: 50 mm, 1 No. |
