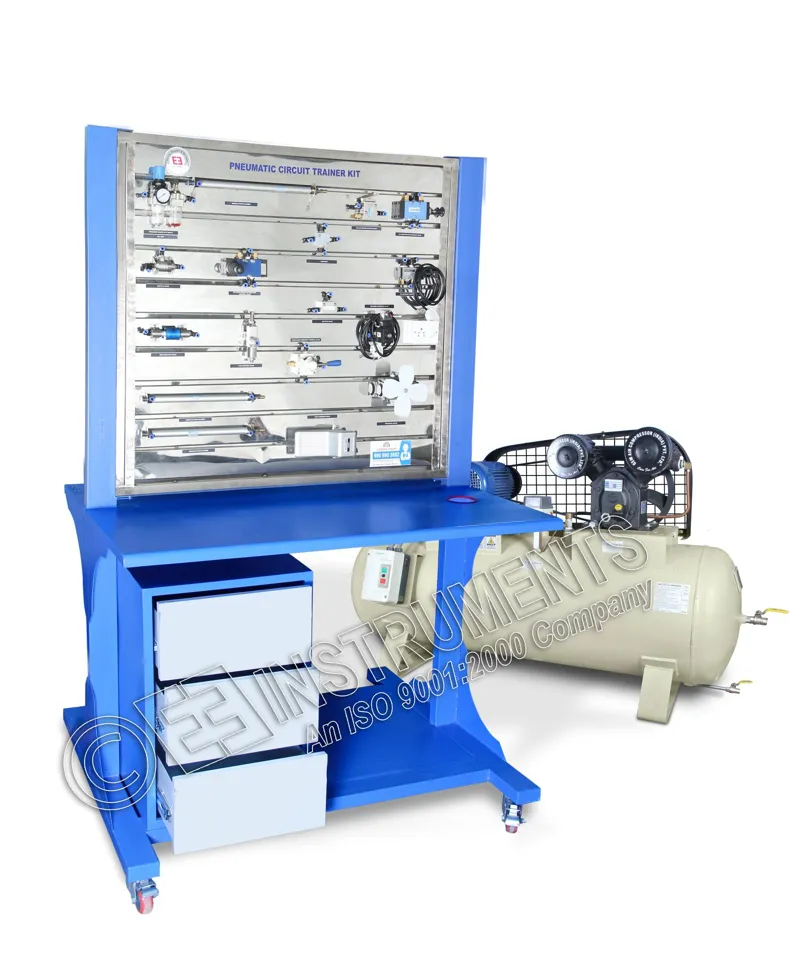

PNEUMATIC CIRCUIT TRAINER KIT-
Detailed Specification as mention in following page.
RANGE OF EXPERIMENTS :
- Study of actuations of various types of Direction Control Valves.
- Control of Single Acting Cylinder.
- Control of Double Acting Cylinder.
- Study of Pilot Operated. Direction Control valve.
- Speed regulation of a cylinder.
- Sequencing Operation of Linear Actuator
The Pneumatic Circuit Trainer Unit consists of following components & accessories for carrying out the study of various pneumatic circuits.
- Mounting frame made up of M.S. angles and sheet ‑ Powder coated.
- Filter Lubricator & Regulator Unit ‑ 1 No.
- Lever Operated Direction Control Valve. 5/3 way ‑ 1 No.
- Foot Operated valve . 5/2 way. ‑ 1 No.
- Pilot Operated Valve. 5/3 way. ‑ 1 No.
- Roller Operated Valve. 3/2 way. ‑ 1 No.
- Solenoid Operated Valve. 5/3 way. ‑ 1 No.
- Push Button Operated Valve. 5/2 way ‑ 1 No.
- Throttle Check Valve. ‑ 1 No.
- Pressure Gauge 0 ‑ 10 Kg/Sq.cm ‑ 1 No
- Pneumatic Rotary Motor ‑ 1 No.
- Necessary High Pressure PUC Piping With Quick Release Couplings ‑ 10 meters.
- Double acting Cylinder. ‑ 1 No
- Single Acting Cylinder. ‑ 1 No.
SERVICE REQUIRED: -
7 Kg/cm2 Air Compressor with 15 amp single Phase electric connection (OPTIONAL)
