BERNOULLI'S THEOREM APPARATUS-

BERNOULLI'S THEOREM APPARATUS-

Model Number : EIE-FM-002

Bernoulli's principle named after the Dutch Swiss mathematician Daniel Bernoulli is one of the most widely used theorem in the field of fluid dynamics. The apparatus consists of converging diverging circular test section. Static Pressure tapings are provided across the length of the section and velocity head is measured with reading for various flow rates. Detailed Specification as mention in following page.

Piezometer Tube No :                1             2             3             4             5             6             7             8

Diameter of cross sections:      34.0       27.5       22.9       25.0       28.1       31.1       34.2       37.2

Construction Details :

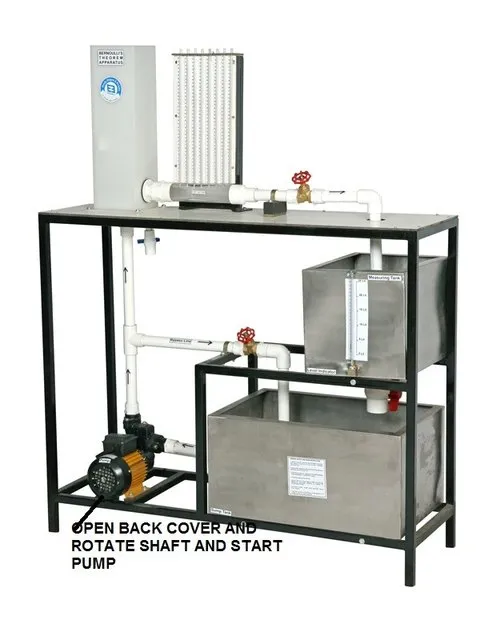

The complete unit comprises of a test  setup  with sump tank & measuring tank. The exterior body of the unit is powder coated with attractive shades. The pressure test section is an accurately machined clear acrylic duct of varying circular cross section. Water is supplied from the constant head tank attached to the test section. Test sections is provided with a  8 numbers of side hole pressure tapings  known as piezometric tubes  at different distance. These tapings allow the measurement of static pressure head simultaneously at each of 8 sections. The tapping positions and the test section diameters are narrated in the above table.
