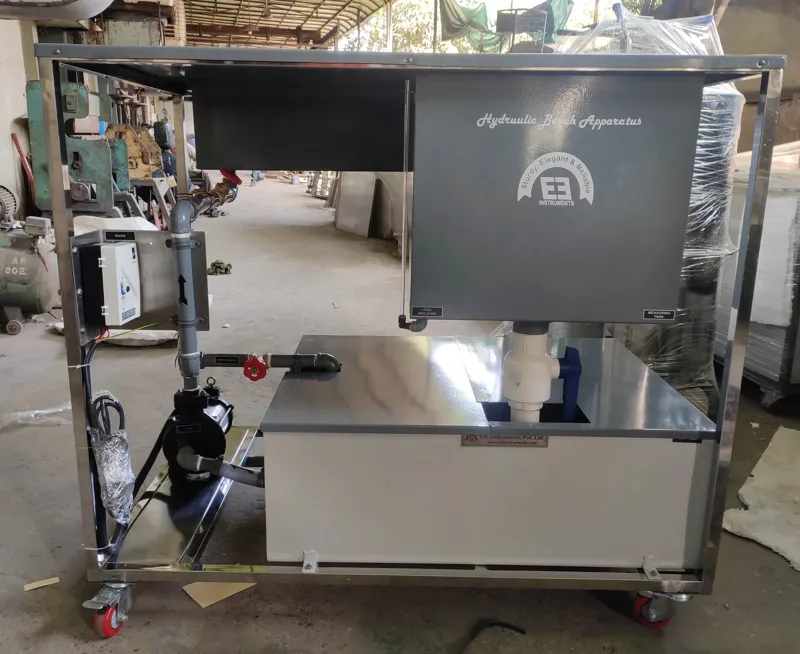

HYDRAULIC BENCH APPARATUS-GMP
Model Number : EIE-FM-018
Detailed Specification as mention is following page.
HYDRAULIC BENCH APPARATUS-GMP
Specification:
- Base module for supplying experimental units in fluid mechanics
- Closed water circuit with storage tank, submersible pump and measuring tank
- Measuring tank divided in two for volumetric flow rate measurements
- Measuring beaker with scale for very small volumetric flow rates
- Measurement of volumetric flow rates by using a stopwatch
- Work surface with integrated flume for experiments with weirs
- Work surface with inside edge for safe placement of the accessory and for collecting the dripping water [8] storage tank, measuring tank and work surface made of stainless steel.
| Pump | |
|---|---|
| Type | Submersible Pump |
| Power | 0.5 HP |
| Power Consumption | 0.370 kW |
| Maximum Flow Rate | 70 L/min |
| Maximum Head | 12 m |
| Storage Tank | Capacity: 180 L |
| Measuring Tank | |
| Large Volumetric Flow | 40 L (Size: 50 × 50 × 15 cm) |
| Small Volumetric Flow | 10 L (Size: 50 × 20 × 10 cm) |
| Flume | Dimensions (L × W × H): 530 × 150 × 180 mm |
| Measuring Beaker | Capacity: 2 L, with scale (for very small volumetric flow rates) |
| Stopwatch | Measuring Range: 0…9h 59min 59sec |
| Power Supply | 230 V, 50 Hz, Single Phase |
| Overall Dimensions (L × W × H) | 1230 × 770 × 1070 mm |
