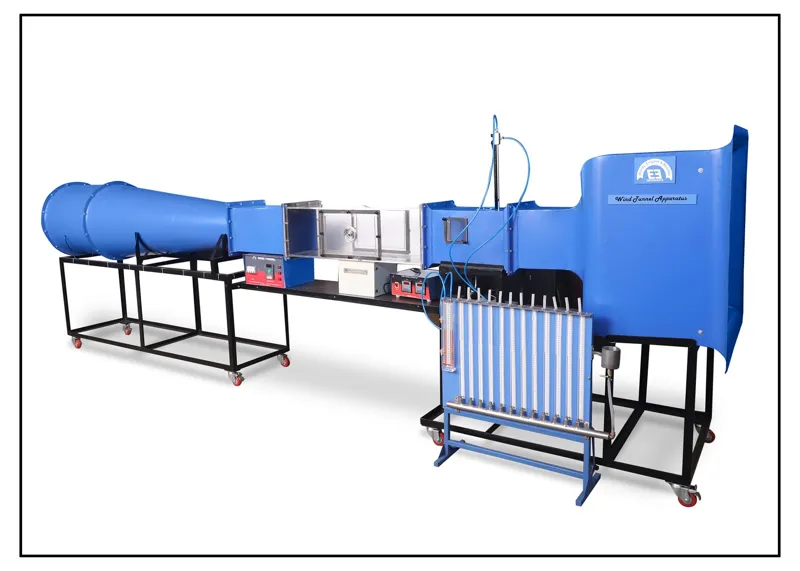

WIND TUNNEL APPARATUS - 5 METER

WIND TUNNEL APPARATUS - 5 METER

Model Number : EIE-AFM-08

Detailed Specification please refer after commercial part.

Features

  1. EIE educational wind tunnel provides a complete subsonic facility for the study of basic aerodynamics.
  2. Fan giving adequate flow for meaningful experiments. Wind speed is regulated by means of a Variac.
  3. Contoured contraction section to give uniform velocity distribution, so that stability of the flow occurs within the test section.
  4. Air enters the test section through a carefully designed M.S. bell mouth entry which produces a uniform steady flow.
  5. The test section is fully perspex for fixing the required models easily and easy for visualization.
  6. The outlet end incorporates a diffuser section to reduce air velocity, provided with honey comb to avoid swirling flow so that stability of the flow occurs.
  7. Wind tunnel is mounted on M.S. frame to have a robust construction to avoid the vibrations.
  8. Air velocity can be adjusted from 0 to 15 m/sec by means of a Variac.

Specifications

Type                                      : Open type

Flow generation                  : By axial flow fan of suitable capacity   to give a velocity of 15m/sec.

Working test section area : 30 x 30 cm^2

Length of test section         : 1.0 m(fully Perspex)

Overall length                      : 5.0 m (approx.)

Max air velocity                   : Up to 15 m/sec

Flow regulation                   : By AC Variac (5 HP)

Motor                                    : ABB make (5 HP,2880 rpm)

Accessories

  1. Aerofoil model with pressure taps   Aerofoil section with a chord length of 20cm height and 20cm  length with  16 pressure points
  2. Cylinder with suitable pressure tapings having provision to vary the angle. Pressure cylinder of 1000mm dia and 25cm length
  3. Complete with 14 pressure points. Cylinder can be rotated on any angle and it can be measured by a protector.
  4. Digital 2 component force measurement transducers to determine  lift/drag.Lift/Drag balance with rating 10 N in lift and 5 N in drag with sensitivity 0.01 N. (Strain gauge type) with 2  channel digital Strain Indicator. Lift/drag Balance has the arrangement to hold the models i.e. Aerofoil, Cylinder and  Sphere.
  5. Sphere model of 100 mm size.
  6. Two dimensional traverse system.   Mechanical Type based on rack and pinion arrangement.
  7. Pitot Tube 6.5 mm dia 300 mm long made of S.S./brass.
  8. Inclined manometer
  9. Digital anemometer for air velocity measurement :0‑30 m/s
  10. Multi‑tube manometer
  11. Aero plane model for lift and drag measurement
