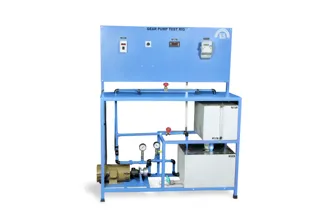

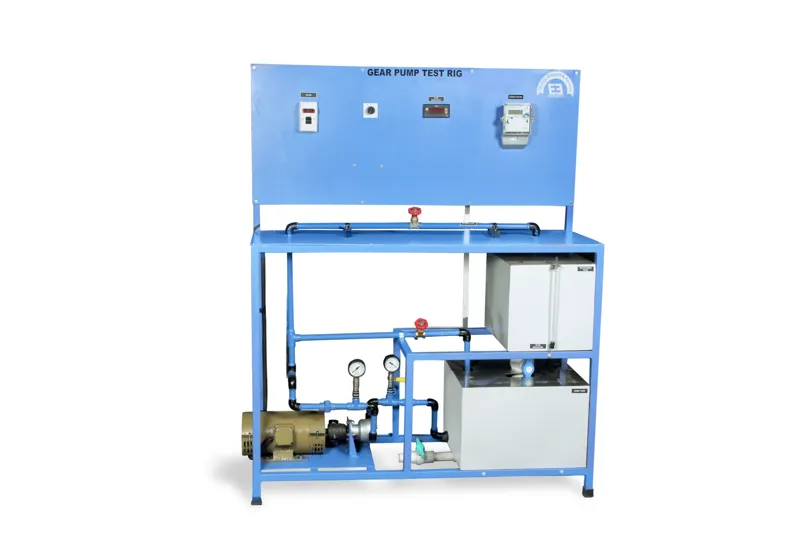

GEAR PUMP TEST RIG - 1 / 2 HP-VIPL-FPE-06

The unit is a self contained recirculation type unit. All the measurements are provided to evaluate the performance of the gear pump. Gear pumps are positive displacement rotary pumps, and are used at many places, especially where high pressures are required, like hydraulic power packs.



SPECIFICATIONS:‑

• Gear pump with 1/2 HP motor with three speed cone pulley, mounted over the sump tank.
• Discharge measurement tank.
• Pressure gauge for discharge head and vacuum gauge for suction vacuum.
• Energy meter for power input.
• Pressure relief valve in discharge pipe.
• Needle valve to control discharge pressure.

Following characteristics can be determined.

• Speed V/S Discharge.
• Head V/S Discharge.
• Discharge V/S input power.
• Discharge V/S efficiency.

Switch and DOLstarter for the above pump set and an energy meter for the measurement of power input.

Rigid M.S. framework compactly fitted with all the above items as a self‑sufficient package unit,  suitable for operation without any foundation.

Accessory: Stopwatch (Digital)
