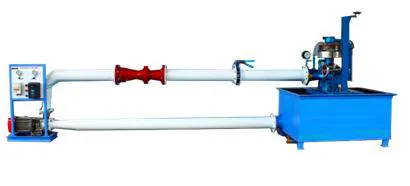

KAPLAN TURBINE TEST RIG - 5 HP
Model Number : VIPL-FPE-14
KAPLAN TURBINE TEST RIG - 5 HP
Aim: To study the characteristics of a Kaplan turbine
| Type | Axial flow reaction Turbine |
|---|---|
| Capacity | 5 HP |
| Rated Speed | 1000 RPM |
| Discharge Capacity | 2000 LPM |
| Supply Head | 7 meters |
| Guide Vanes | Gun Metal Vanes (Aerofoil Blade Shaped) |
| Loading | Rope Brake |
| Material | Cast Iron |
| Drum Size | 300 mm Diameter |
| SUPPLY PUMP SET | |
| Size | 10" x 10" |
| Discharge | 2500 Liters / Minutes |
| Total Head | 7 Meters |
| Motor Capacity | 15 HP |
| Starter For Motor | Star Delta |
| FLOW MEASUREMENT BY PITOT TUBE | |
| Material | Mild Steel |
| Pressure Measurement | Double Column Differential Manometer |
| Sump Tank | S.S. Unit - 304 |
| Material Size | 5 x 2 x 1.2 Meters |
| Service Required | Electrical Supply 15 HP, 3 Phase, 440 V, 50 Hz AC Supply |
