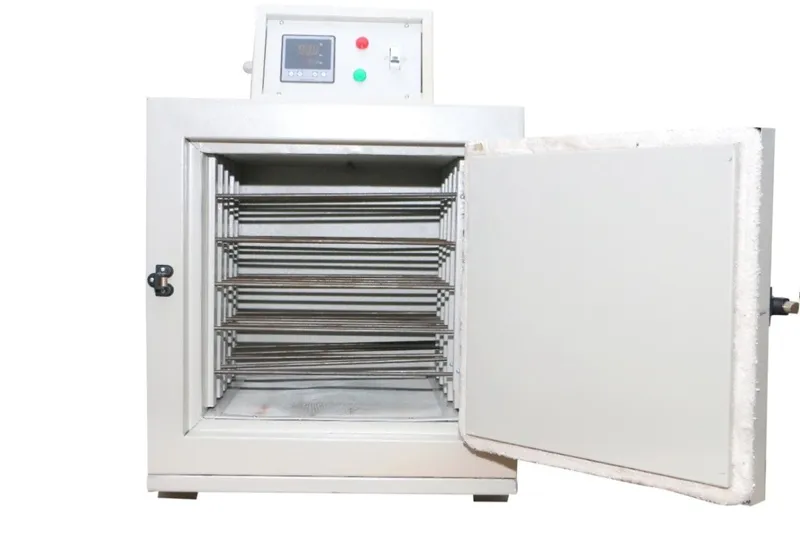

ELECTRODE DRYING OVEN - 100 KG
Capacity (approx.): 100 kg of electrodes, Working Space (H × W × D): 1000 × 650 × 500 mm, No. of Shelves: 10 Nos.wire mesh shelves, Temperature Range: Ambient to 400 °C
Details:
- Even, continuous heat for 100% protection of electrodes.
- Rugged, steel construction.
- Flexibility in storage and temperature control.
| Working Space (mm) | 1000 x 650 x 500 (H x W x D) |
|---|---|
| Capacity (approx.) | 100 Kgs (220 lbs) of 450mm long electrodes |
| No. Of Shelves | 10 Nos. wire mesh tray |
| Temperature Range | Ambient – 400°C (752°F) |
| Temperature Control | Digital Controller (Accuracy of ±1% FSD) |
| Power saving | By a 3-Heat Switch |
| Air circulation | Forced Air, by 2 nos 1/12 hp motor with blower |
| Input Supply | 415 V, Three phase AC, 50 Hz |
| Input Current | 17.2 Amps / Phase |
| Input power | 12 kW |
| Overall Dimensions (H X W X D) (mm) | 1650 X 1370 X 900 |
