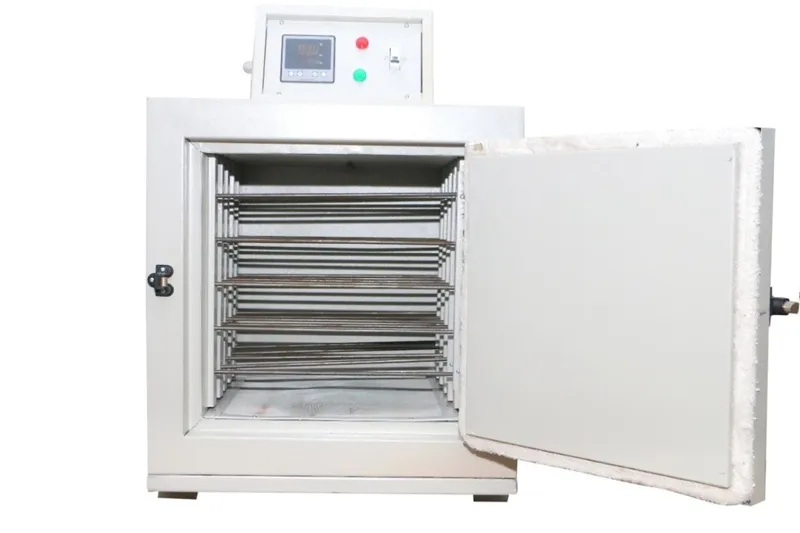

ELECTRODE DRYING OVEN - 200 KG
Capacity: 200 kg, Working Space (H × W × D): 1000 × 1070 × 500 mm, Number of Trays: 8 (wire mesh type), Temperature Range: Ambient to 400 °C, Input Power: 18 kW
Electrode Drying Oven:
Engineered for reliable performance and long service life, this oven ensures even and continuous heat distribution for 100% protection of electrodes. The unit features rugged steel construction, offering durability in demanding environments, along with flexible storage and precise temperature control.
| Temperature Range | Ambient to 400 °C (752 °F) |
|---|---|
| Temperature Control | Digital controller with accuracy of ±1% FSD |
| Air circulation | Forced air, driven by 1/12 HP motor with blower |
| Input Supply | 415 V, Three Phase AC, 50 Hz |
| Input Current | 25.8 Amps per phase |
| No. Of Shelves | 8 Wire mesh shelves |
| Input power | 18 KW |
| Capacity (approx.) | 200 kg (440 lbs) of 450 mm long electrodes |
| Working Space (mm) | 1000 × 1070 × 500 |
| Overall Dimensions (H X W X D) (mm) | 1650 x 1770 x 900 |
