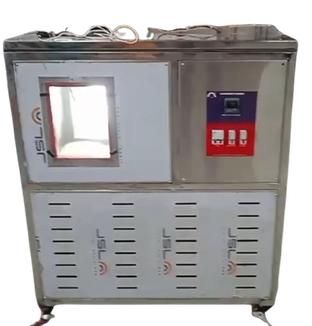

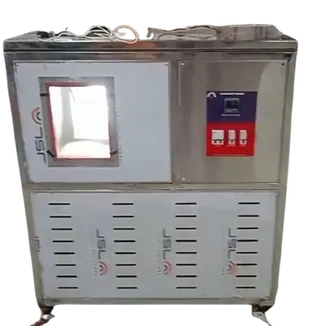

ULTRA LOW TEMP. KINEMATIC VISCOSITY BATH - (-40˚C) - COMPLETE S.S.
Model Number : EIE-410ULDCS40
Suited for 4 Viscometer at a time. Compliance with following International Standards : ASTM D445, IS 1448 (P 25). Detailed Specification as follows:
Compliance with following International Standards:
ASTM D445, IS 1448 (P-25), ASTM D446
Application:
Used for determination of kinematic and intrinsic viscosity Of fuels, lubricants & petrochemical raw materials at constant temperatures in accordance with ASTM D4603, d446 and other equivalent methods
Annexure:
- Microprocessor based circuitry assures precise, reliable temperature control within specified tolerances throughout the operating range of the bath i.e. -40 °C to ambient temperature.
- Dual digital displays show set and actual bath temperature
- Simple push button controls and digital display permits easy setting and monitoring of bath temperature.
- Bath accommodates 04 Nos glass capillary reversion viscometers of various types at a time
- Viewing the viscometers is made easy by glare‑free fluorescent illumination.
- Temperature control uniformity is assured by means of motorized stirrer, which provides complete circulation without turbulence.
- Frost free glass window for low temperature bath
- Control panel is mounted on a side of the bath
- Complete exterior body is fabricated from S.S.304
Technical Specifications of Refrigeration System:
- Refrigeration system : Emerson/Danfoss Make refrigeration system
- Compressor : Hermetically Sealed Compressor
- Condenser : Fin & Tube type Air‑Cooled Condenser
- Refrigerant : R134a
Optional Accessories At Extra Cost:
- Voltage Stabilizer (Highly recommended)
- Temperature calibration certificate as per ISO/IEC : 17025 (NABL)
- Thermometer glass ‑ ASTM 126C/ASTM 127 C or any other range as per the application
- Glass U Tube Viscometer to be purchased at extra cost
- viscometer rack for safe keeping of U Tube Viscometer - can accommodate 6 tubes on a bench top
Note:
Use of RO/DM Water as a bath media is mandatory for long lasting performance of Heaters. Warranty void in case of non compliance
| Bath | |
|---|---|
| Dimensions of bath | 300 x 260 x 300 mm (L x W x D) |
| Volume of the bath | 23 Liters capacity |
| Temperature Control | Range : -40 °C to ambient |
| Temperature controller | Microprocessor based Auto Tune PID Digital Temp controller cum indicator |
| Temperature sensor | PT 100 Sensor |
| Temperature Display | LED Display |
| Display resolutions | 0.1 °C |
| Temperature Accuracy | ± 0.5 °C |
| Heater | Immersion heater |
| Viewing window | Vacuum glass window for frost free viewing below 5°C range |
| Stirrer | 1400rpm motor with stirrer for uniform Temperature |
| Stirrer Motor | Of reputed make |
| Inner chamber | Stainless Steel S.S. 304 Grade with tempered glass |
| Exterior body | Stainless Steel S.S. 304 Grade with tempered glass |
| Illumination | PL Lamp |
| Accessories | Supplied complete with Viscometer holders |
| Accommodate | 04 Nos of viscometers |
| Bath Media | ISOPROPYL ALCOHOL or suitable heat transfer fluid (To be supplied by user) |
| Electrical Supply | 220 volts, 50 Hz, AC Supply |
| Power Consumption | 2 KW |
| Refrigeration System | |
| Refrigeration | Emerson/Danfoss Make refrigeration system |
| Compressor | Hermetically Sealed Compressor |
| Condenser | Fin & Tube type Air Cooled Condenser |
| Cascade System | For below -40°C ranges |
| Refrigerant | R404a |
