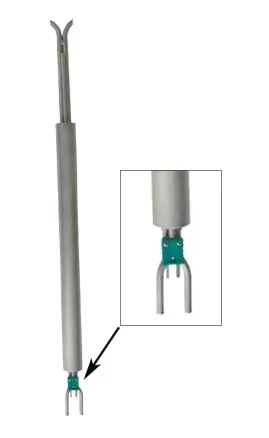

PITOT TUBE S TYPE - 1000 MM
Model Number : TPS-08-1000-T
Pitot tube type S, as per ISO10 780 norm, with TIG welding. Integrated Thermocouple K probe, with connection cable length 1.5m. Operating temperature from 0 to 1000°C. Diameter 8 mm, with protection tube 28mm, length 1000 mm.
Pitot tube type S, as per ISO10 780 norm, with TIG welding. Integrated Thermocouple K probe, with connection cable length 1.5m. Operating temperature from 0 to 1000°C. Diameter 8 mm, with protection tube 28mm, length 1000 mm.
| Model | S type Pitot tube |
|---|---|
| Coefficient | 0.84 ± 0.01 |
| Material | Stainless steel 316 L |
| Measuring Range | 3 to 85 m/s |
| Operating Temprature | From 0 to 1000°C |
| Static Pressure | Atmospheric |
| Global Accuracy of the Measurement System | 1% of measurement + accuracy of the pressure sensor |
| Norms | ISO 10 780 |
