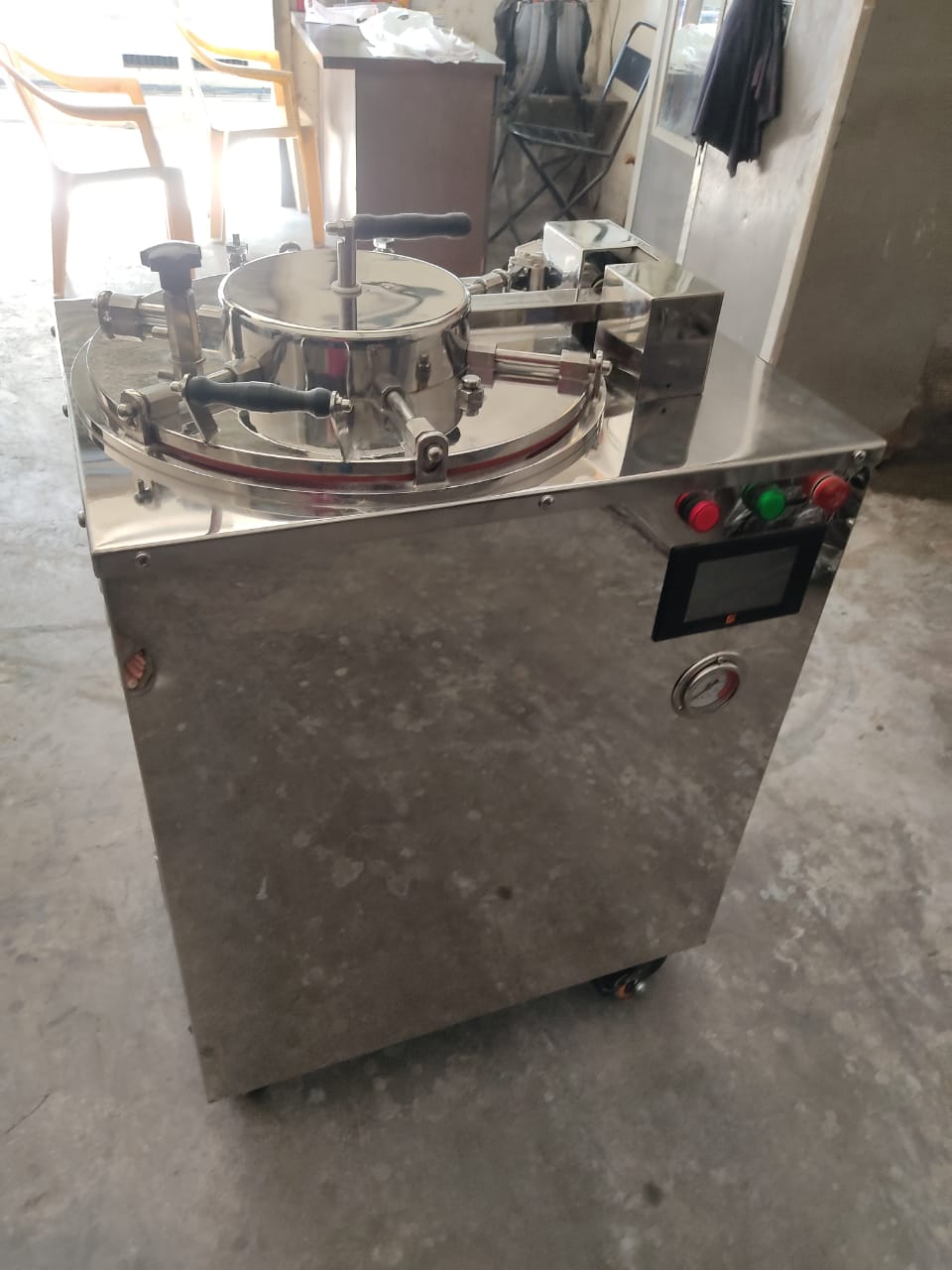

RECTANGULAR SHAPE VERTICAL AUTOCLAVE-GMP-SINGLE LEVER LOCK-FULLY AUTOMATIC-45 X 75 CM (D X H)

Salient Features

1. Top loading Autoclave with Single Lever Radial Locking facility
2. Rectangular shape exterior body structure
3. SS - 304 cylindrical shell with ASME standard Bottom dish for 100% Drain
4. Working chamber made of stainless steel LM - 304 grade
5. Exterior Body is made of stainless steel LM - 304 Grade
6. Single chamber for steam generation and water storage
7. Control panel is mounted in the frame with necessary electronics
8. Fully automatic Digital PID controller
9. Displays current temperature & set temperature with remaining cycle time
10. Automatic Air Purging
11. Automatic Steam Exhaust at EOC (End Of Cycle)
12. Process will not start unless lid is not locked fully and lid will not open when chamber is under pressure.
13. Caster wheel for easy movement
14. Supplied complete With S.S. - 304 wire mesh carrier
15. Supplied complete with Calibration certificate with traceability
16. Provision for Qualification documents (DQ, IQ, OQ, PQ) (At extra cost)

Solenoid valve:

1. Initial automatic air purging cycle
2. Automatic steam exhaust (Depressurized) at the end of cycle.

Safety features:

1. Double safety radial locking arrangement
2. Low water level heater safeguard.
3. Low water level cut off system.
4. Safety high pressure release valve (Spring loaded mechanical valves)
5. Safety high temperature cut off.

Mode of Heating :

Electrically heated by special flange type/immersion type heaters
