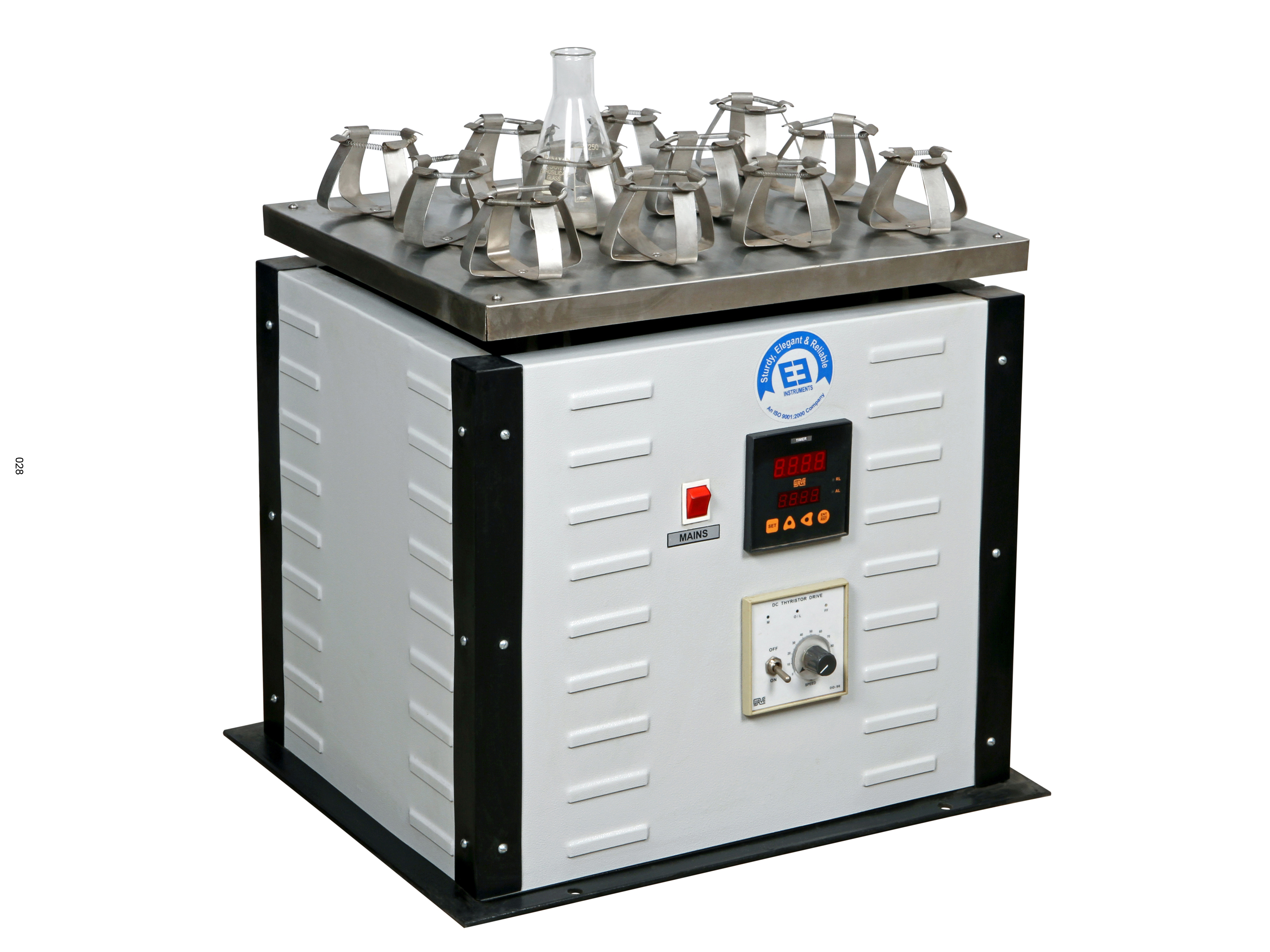

ROTARY SHAKING MACHINE FOR FLASKS - PLATFORM SIZE 72"X 72" - 50 FLASK OF 5000 ML
Model Number : EIE-113DP72
The driving mechanism is enclosed in a mild steel sheet cabinet beautifully painted. The shaker is fitted with DC Motor with electronic speed regulator. The DC Motor will ensure continuous work and precise speed control. The shaking speed will be 50-200 RPM approx. The S.S.304 top platform have S.S clamps to hold conical flask in between them. WITH DIGITAL RPM INDICATION , Working on 230 V AC single phase . Suitable for 50 Flasks X 5000 ml Supplied with out S.S.Clamps which are available at extra cost and quoted separately.
ROTARY SHAKING MACHINE FOR FLASKS - PLATFORM SIZE 72 X 72 - 49 FLASK OF 5000 ML
The driving mechanism is enclosed in a mild steel sheet cabinet beautifully painted. The shaker is fitted with DC Motor with electronic speed regulator. The DC Motor will ensure continuous work and precise speed control. The shaking speed will be 50-200 RPM approx. The S.S.304 top platform have S.S clamps to hold conical flask in between them. WITH DIGITAL RPM INDICATION , Working on 230 V AC single phase . Suitable for 50 Flasks X 5000 ml or 64 flasks X 250 ml or 49 flasks of 500 ml or 36 flasks of 1000 ml. Supplied with out S.S.Clamps which are available at extra cost and quoted separately.
Applications:
Useful for uniform mixing by circular motion in a horizontal plane. Used extensively in tissue culture work, aeration of fermentation and other chemical mixing procedures.
Salient Features:
- Unique and compact design for Laboratory purpose
- Aesthetic exterior appearance
- Complete driving mechanism is enclosed in mild steel cabinet.
- Shaker is fitted with DC Motor along with electronic speed regulator.
- DC Motor with DC Drive work as precise electronic speed regulator.
- The DC Motor will ensure continuous work and accurate speed control.
- Shaker is also equipped with DIGITAL RPM INDICATOR to digitally display the shaking speed.
- The shaking speed will be 50‑200 RPM approximately.
- Instrument is supplied with polished stainless steel S.S. ‑ 304 grade top platform
- S.S. Clamp to hold conical flasks of varying capacity shall be ordered separately. (Please refer to the optional accessories)
- Works on 230 Volts, 50 Hz, Single Phase, AC Supply
| Shaker Construction | Single Wall construction |
|---|---|
| Top chamber | Fabricated from polished stainless steel material S.S. 304 grade |
| Exterior body | Fabricated from Mild steel material |
| Paint | Powder coating in attractive shades |
| Shaking | Achieved by DC motor with DC Drive |
| Motor RPM | 50 -200 RPM (Shaking speed) |
| Motor speed display | Digital RPM Indicator (Shaking speed display) |
| Speed control | By electronic Speed Regulator DC Drive |
| Shaking racks material | Manufactured from polished stainless steel material S.S. 304 Grade |
| Platform Size | 72” x 72” (90 x 90 cm) (L x W) |
| Power Consumption | 1.5 KW |
| Operation on | 230 Volts, 50 Hz, Single phase, AC Supply |
