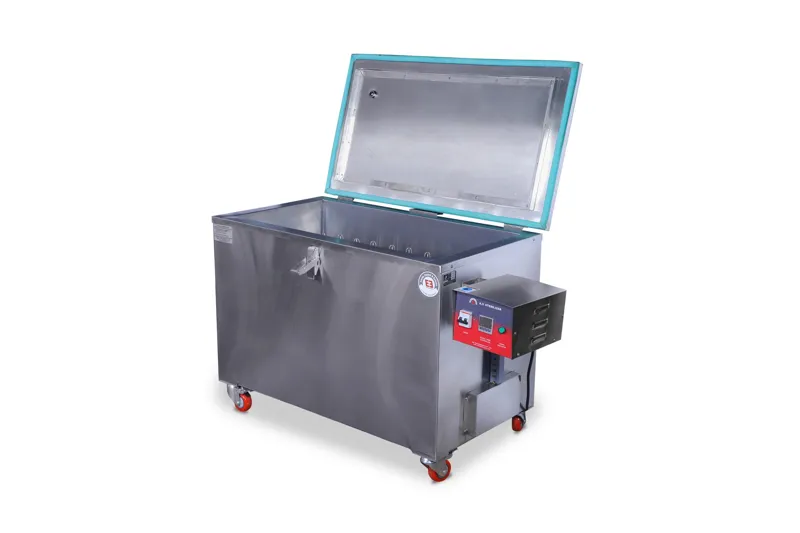

STEAM POT WATERBATH CUM STERILIZER - DIGITAL - 900 X 450 X 500 MM-

Details:

1. The steam pot water bath ( Sterilizer) is a non-pressurized steam based sterilizer used to sterilize the digestion of media in glassware . double Walled Chamber made of high quality Heavy Stainless Steel (SS-304) sheet , Water heating system placed at the bottom of chamber Perforated SS Grill above heater- Water outlet cock near the base of chamber- Water heating system will be provided with temp. regulator, Temp. Range ,5°C above ambient Temp.to 100°C , Chamber mounted on castor wheels, with Digital Timer 0-999 Min , Working on 230V single phase.

Applications:

1. The steam pot water bath ( Sterilizer) is a non-pressurized steam based sterilizer used to sterilize the digestion of media in glassware.


Salient Features:

1. Double Walled, inner Chamber made of high quality Heavy Stainless Steel (SS-304) sheet,
2. Water heating system placed at the bottom of chamber.
3. Perforated SS Grill above heater
4. Water outlet cock near the base of chamber
5. Water heating system will be provided with temp. regulator,
6. Temp. Range 5°C above ambient Temp to 100°C
7. Chamber mounted on castor wheels
8. Equipped with Digital Timer 0-999 Min
9. Works on : 230 Volts, Single phase, AC Supply


Platform size:

1. 800 X 350 mm Approx.


Construction:

1. Inner stainless steel, double walled construction with insulation of preventing energy losses
2. Hinged lid for easy opening as well as effortless loading & removal of flasks
3. Drain Valve for draining chamber water
4. Open port at top for venting of steam
5. Validation port provided as part of standard supply
6. Temperature range: Ambient +5 to 100ºC
7. Accuracy: ±1ºC
8. Resolution: 1ºC


Accommodates following size of Glasswares:

1. Erlenmeyer Flask capacity 250 ml - 24 Nos
2. Erlenmeyer Flask capacity 500 ml - 15 Nos
3. Erlenmeyer Flask capacity 1000 ml - 12 Nos
4. Erlenmeyer Flask capacity 2000 ml - 06 Nos
5. Erlenmeyer Flask capacity 3000 ml - 06 Nos
