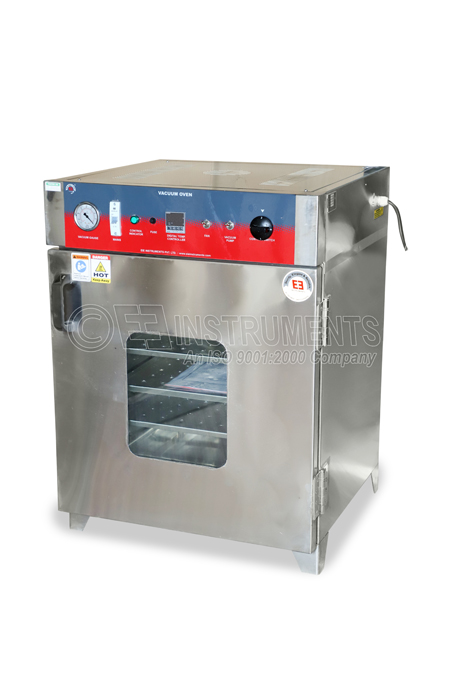

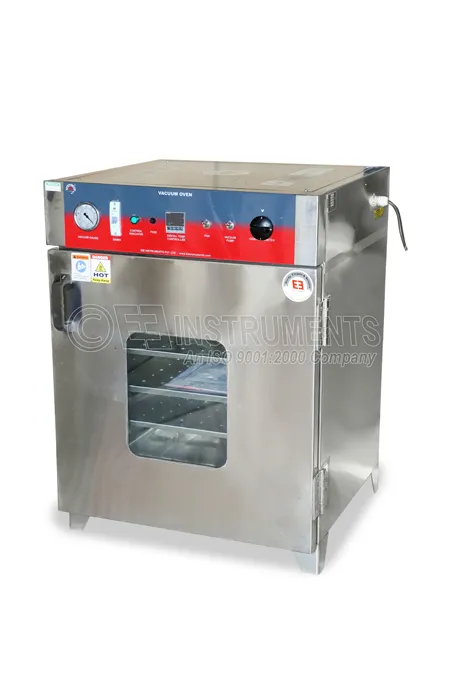

VACUUM OVEN - GMP - 45 X 45 X 45 CM - 92 LITERS-

Details:

1. Double walled, working chamber of made of S.S.316 mirror polished and outside made of S.S.304. The door is of S.S. with center glass window for viewing without opening the door. Temp. controlled from 50°C - 200°C by AUTO TUNING PID Digital Temp. indicating controller, complete with Vacuum gauge, vacuum release valve, a removable shelf but without vacuum Pump. Working on 230 V AC Single phase.

Features:

1. Inner chamber of stainless steel S.S. ‑ 304 Material
2. Outer chamber is fabricated from S.S. ‑ 304 Material
3. Glass wool insulation around the chamber to minimize heat loss due to radiation.
4. Thick tempered toughened glass window in door, Perfectly sealed with neoprene rubber gasket, for observation without disturbing thermal condition
5. Specially designed pre‑treated SS door with inside stainless steel lining
6. Proper door alignment to ensure excellent vacuum performance and operator’s safety
7. Fitted with diaphragm valves and a vacuum gauge.
8. Designed to be operated at any pressure less than atmospheric pressure.
9. Two neon lamps indicating control cycles as well as mains and heater switch

Note:

1. Complete with Vacuum gauge, vacuum release valve and a removable shelf, but without vacuum Pump.

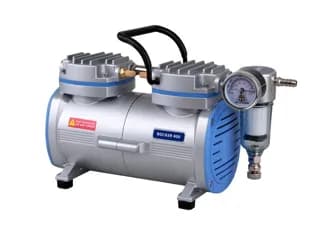

2. Client has to arrange vacuum pump on his own or can order optionally.
