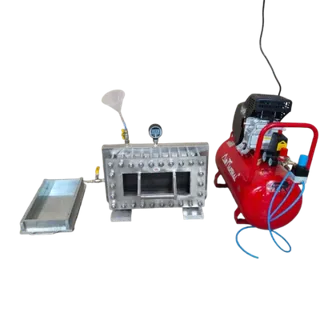

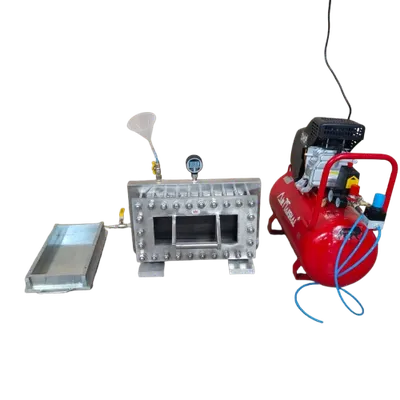

HYDROSTATIC PRESSURE RESISTANCE OF WATER PROOFING MEMBRANE APPARATUS

HYDROSTATIC PRESSURE RESISTANCE OF WATER PROOFING MEMBRANE APPARATUS

Model Number : GT-125

As per ASTM D5385, IS 16352. This apparatus is designed to determine the hydrostatic pressure resistance of waterproofing membranes by subjecting the test specimen to controlled water pressure. It evaluates the membrane’s ability to withstand water penetration under specified pressure conditions, ensuring suitability for construction and waterproofing applications. Supplied complete with all required accessories, it offers robust construction, accurate pressure measurement, and reliable performance for laboratory testing.

Compliance Standards :

ASTM D5385, IS 16352

Applications :

To test the hydrostatic resistance of waterproofing membrane under controlled condition

Details :

Consists of following parts and accessories

  1. Chamber as per figure 1 of ASTM D5385 standard
  2. Clamping bracket as per figure 2 of ASTM D5385 Standard
  3. The gasket and fastener to form the completed assembly as per figure 3 of ASTM D5385 Standard
  4. Air compressor to generate pressure upto 690 KPA (100 PSI) with an air pressure controller to regulate air in 15 psi interval
  5. Digital Pressure gauge - 1 to 25 Bar
  6. Plastic Funnel - 100 mm
  7. Stop Watch
  8. Silicon vacuum grease
  9. Smooth surfaced Metal Plate
  10. Concrete substrate casting mould

Please click on the following Link to check the Operation vedio of this Machine : https://youtu.be/isuh1mSPEBM?si=5fOY956g1bVO178I

Note :

User shall have large conditioning chamber to condition, prepare and test the specimens. For sheet systems, the temperature shall be maintained between 2-7 C, For Liquid applied systems the temperature shall be maintained between 18-24 C.
