GRADIENT RATIO TEST APPARATUS - SOIL GEOTEXTILE PERMEAMETER - WITH PIEZOMETERS AND DATA ACQUISITION SYSTEM - ASTM D5101-

Details of apparatus:

Equipped with following parts and accessories

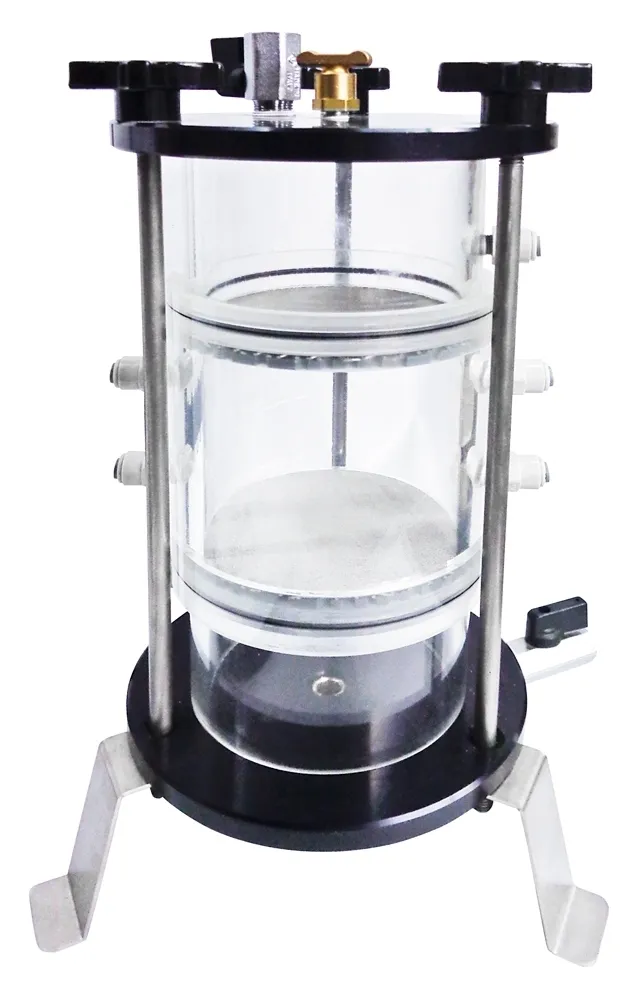

• Soil‑Geotextile Permeameter (Three‑piece unit) ‑ 100mm diameter
• Permeameter accommodates 100 mm diameter test specimen
• Equipped with Support Stand, Soil‑Geotextile support screen, Piping barriers (caulk), Clamping brackets, and Plastic tubing ‑ Fig. 3 of ASTM D5101
• Also, equipped with Two Constant Water Head Devices - One mounted on a jack stand (adjustable) and Another stationary ‑ Fig. 1 of ASTM D5101 for head adjustment and hydraulic gradient application purpose
• Two Soil Support Screens, of approximately 5 mm (No. 4) mesh
• Soil Support Cloth, of 150 μm (No. 100) mesh
• Algae Inhibitor/Micro screen
• Inlet and outlet valves with non-corrosive piping network
• Pressure sensor, i.e. piezo transducer with a maximum pressure 50 kPa, least count 1 mm water head
• Outlet tank with measuring device, i.e Digital flow meter with accuracy of 1 ml/min with Data acquisition system.
• Outlet tank incorporates water circulating pump to pump the discharged water again back to the inlet tank
• Digital Thermometer with interface attachment to dedicated Data acquisition system.
• Digital PLC Controller and Touch screen HMI system
• Computer system, required software for data acquisition.
• Incorporates Soil Leveling Device (Straight Edge or Scrapper)
• Supplied complete with Funnel to facilitate soil placement in the apparatus and Wooden rod, 20 mm dia x 150 mm long for soil compaction purpose

End user will also need following additional equipment and accessories to conduct the complete test

(Please refer to the recommended accessories section at extra cost)

1. Stopwatch
2. Electronic Balance ‑ 2 kg x 0.1 Gram
3. Carbon Dioxide, (CO2), gas cylinder and regulator

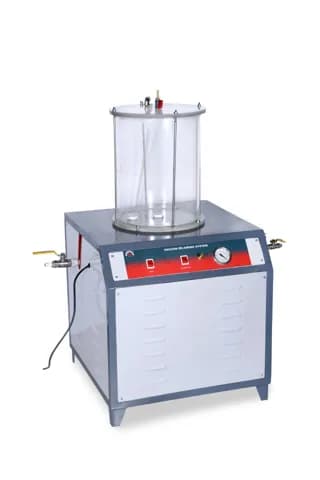

4. Water De‑airing System
5. Soil Sample Splitter
6. Pan, for drying soil
7. Mortar and Pestle, for pulverizing soil
