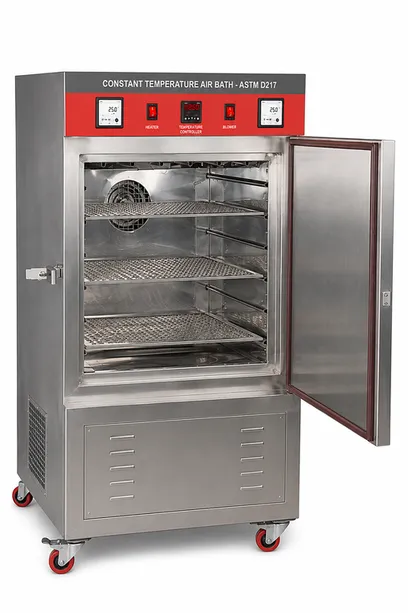

CONSTANT TEMPERATURE AIR BATH - FOR GREASE PENETRATION TEST - ASTM D217
Model Number : EIE-PTGT-147.1
Constant Temperature Air Bath for Grease Penetration is designed for controlled-temperature conditioning of grease samples prior to penetration testing in accordance with IS 1448 (Part 60) / ASTM D217. The unit provides precise temperature control from 15°C to 30°C with ±0.5°C accuracy, using a microprocessor-based PID controller with PT-100 sensor. It features SS 304 construction, CFC-free refrigeration, insulated dual-door arrangement, adjustable shelves and calibrated reference thermometers for reliable laboratory operation.
Applicable Standards :
The equipment is designed to comply with IS 1448 (Part 60) / ASTM D217, latest version, for grease penetration testing.
Salient Features:
- Exterior body is fabricated from S.S. 304 Material
- Interior chamber is also fabricated from Mirror polished Stainless Steel S.S. ‑ 304 Material
- Outer double walled metal door with sponge ‑ type silicon gasket for air‑tight sealing as to avoid leakage of chamber uniformity
- Electrical wiring as per CE Compliances ‑ with individual numbering of each internal circuitry wire for ease of maintenance & Repairing
- Chamber illumination is accomplished by Fluorescent light with door switch.
- Cord wire duly tested and inspected with stress factor as per CE standard
- Electric Motor of blower located at the back side of unit, which is protected with safety cover to avoid accident
- Standard motor of reputed companies ‑ such as CG/GODREJ/GE/Any other reputed Make
- User friendly and tactfully designed chamber door and locking mechanism
- Aesthetic outer appearance and high quality
- Unit mounted on castor wheels for easy movement.
- Supplied complete with Stainless Steel Trays for sample placement
Air Circulation :
- Temperature is maintained by a quiet running blower for better air circulation throughout the chamber. Forced air circulated vertically down and re‑circulated throughout the chamber for uniform temperature distribution.
Heating & Cooling System :
- Long lasting U‑Shaped tubular heaters used as heating element. Hermetically sealed compressor CFC free compressor (134 A gas) coupled with evaporation coil and condenser.
Trays for samples :
- Removable wire mess trays are part of the standard supply.
- Strong enough to with‑stand heavy load of test specimens, which should be equally distributed among trays.
- Such trays will also facilitate better air circulation.
- The distance between trays will be 15‑20 centimeters.
Safety Features :
- High temperature safety cut off (Thermostat)
- Electrical overload safety (Fuse 10 Amperes)
- Time delay for compressor switch ON
Specification :
Bath Type :
Constant Temperature Air Bath suitable for conditioning grease penetration test samples.
External Dimensions :
Approx. 24" (H) × 18" (D) × 18" (W).
Temperature Range :
15°C to 30°C or wider
Temperature Accuracy :
Temperature is maintained within ±0.5°C or better throughout the working range.
Temperature Controller :
Digital display, microprocessor-based PID temperature controller with PT-100 sensor, providing 0.1°C resolution and separate displays for set value and process value. Feather-touch keypad is provided.
Construction :
Rectangular, vertical, double-walled construction. Inner chamber is fabricated from 18 SWG, AISI 304 corrosion-resistant stainless steel. Outer body is fabricated from 19 SWG AISI 304 stainless steel with matt finish.
Thermal Insulation :
CFC-free PUF insulation with low thermal conductivity is provided. Breaker strips are incorporated to minimize heat transfer and improve thermal efficiency.
Doors :
Two-door arrangement comprising an inner transparent acrylic door for clear observation and an outer insulated metallic door for thermal stability.
Shelves :
Adjustable shelves are provided for convenient placement of test samples/containers.
Thermometer Provision :
Provision is provided for insertion of an external/reference thermometer for temperature verification.
Cooling System :
Equipped with a CFC-free, eco-friendly refrigeration compressor suitable for maintaining the specified low-temperature range.
Controller Calibration :
The temperature controller/sensing system is supplied with a calibration certificate from an NABL/ISO 17025 accredited laboratory.
Power Supply :
230 V AC ±10%, Single Phase, 50 Hz.
Voltage Protection :
Built-in stabilization/protection is provided for an input voltage range of 150–280 V, with power cut-off outside this range.
Power Connection :
Three-pin industrial-type socket with 15/20 A metal-clad plug for connection to the mains supply.
Accessories (At extra cost) :
IP 38C thermometers with Teflon cork – 2 Nos., each supplied with a calibration certificate issued by an ISO/IEC 17025:2017 accredited laboratory.
Note : For worked penetration, the grease sample, worker cup, plunger and cone are also required to be at 25 ± 0.5°C before the test
