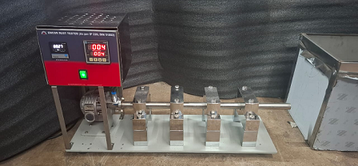

EMCOR RUST TEST APPARATUS-IP 220, ISO 11007, ASTM D6138, DIN 51802-FOUR TEST POSITIONS

EMCOR RUST TEST APPARATUS-IP 220, ISO 11007, ASTM D6138, DIN 51802-FOUR TEST POSITIONS

Model Number : EIE-PTGT-140EMC

As per ASTM D1743. Supplied without Oven. Further details as per the following pages

Compliance Standards

IP 220, ISO 11007, ASTM D6138, DIN 51802


Purpose

The purpose of the test is to measure the ability of a grease to protect a bearing against corrosion even in the presence of water.


Test summary

Two sets of grease-coated bearings per station are partially immersed in water (distilled, salt or synthetic sea-water) and rotated at a speed of 80 rpm in a sequence of running and resting periods. At end of the test, the raceways of the bearing outer rings are inspected for rust.​


Salient Features

  • 4/6/8 test positions
  • Digital AC/DC Drive for Speed Control
  • Digital RPM Indicator
  • Digital Timer
  • Optional Safety cover
  • Outer powder coated body with attractive shades
  • Ease of Cleaning and Maintenance
  • Performs both standing and dynamic test of lubricating greases and oils.


Details of the test rig

  • Capable of performing 4/6/8 tests at a time
  • Provided with Base plate.
  • Electric motor with gear.
  • Electronic Timer for predetermined time setting with on/off.
  • Plummer blocks (bearing housing) made of 316 grade stainless steel.
  • Steel shaft.
  • Adapter sleeves, sleeve nuts and V ring.
  • Supplied with test bearings – 4 Nos. (Indian SKF bearings with PVC cage) as per IP220.
  • Supplied with required tools and fixtures.
  • Operated on 230 volts, 50 hz, single phase, AC Supply



Note : New pair of test bearings - Either (Indian SKF bearings with PVC cage) or Imported 1306K/ 236725 Bearings are required for each test. Please take note of it.
