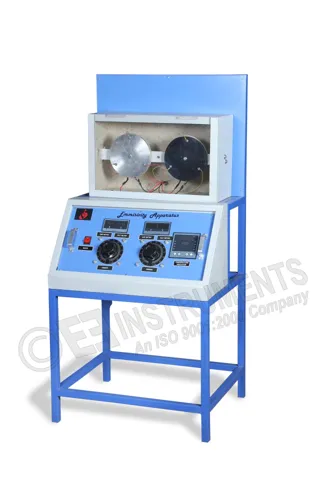

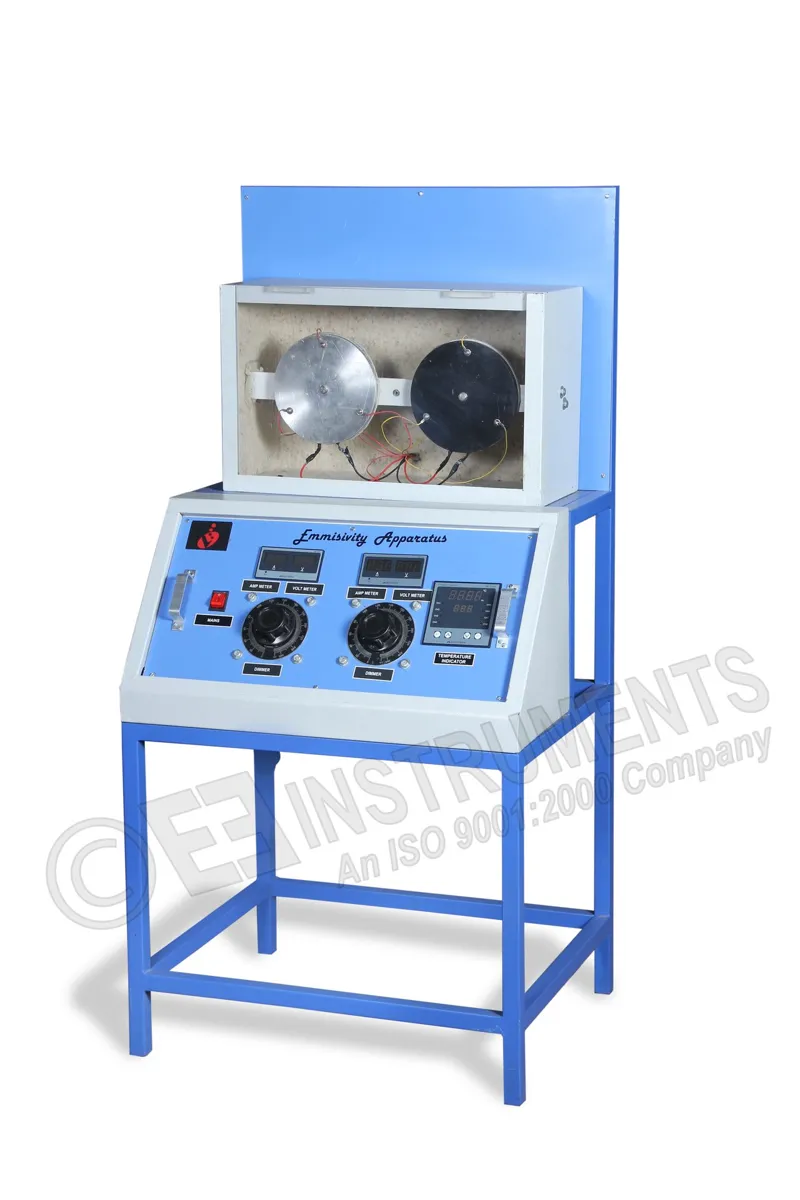

EMISSIVITY MEASUREMENT APPARATUS-
Model Number : VIPL-HT-05
Detail Specification as per following page.
EXPERIMENTATION:
Measurement of emissivity of non‑black surface over a range of temperatures.
DESCRIPTION:‑
Experimental setup consists of two circular plates identical in size and are provided with heating coils. The plates are kept in an enclosure and heat input can be varied by regulators and is measured by an ammeter and voltmeter. Each plate has thermocouple and one to read the chamber temperature. One plate is blackened by a layer of enamel black paint to form the idealized black surface whereas the other plate is the test plate. The aim is to measure the emissivity of the test plate surface.
FEATURES :
- Digital Temperature Indicator for Temperature Measurement.
- Complete panelized instrument for electric input
- seven Thermocouples to obtain temperature distribution clearly.
SPECIFICATION:
- Test plate & Reference plate size ‑ 160mmdia.(aluminum)
- Enclosure size‑58 cm x 35 cm with one side of Perspex sheet.
- Heater‑200v,350 watt, Nichrome wire type Sandwitched between mica sheets.
- Control panel comprising of ‑
- Voltmeter ‑ 0‑100/200v(2 no)
- Ammeter ‑ 0‑2A(2 no)
- Dimmer stat ‑ 0 ‑ 2A. 240V
- Digital Temperature indicator 0‑300`C with 1`C least count Using chromel alumel thermocouples. Provided with cold junction compensation.
SERVICE REQUIRE:‑
- 230 v AC, 5 amp single phase Stabilized supply with the product.
- Space area of 0.6 m x 0.5m at working height
An instruction manual is supplied along with the equipment which describes the apparatus and procedure of experimentation.
