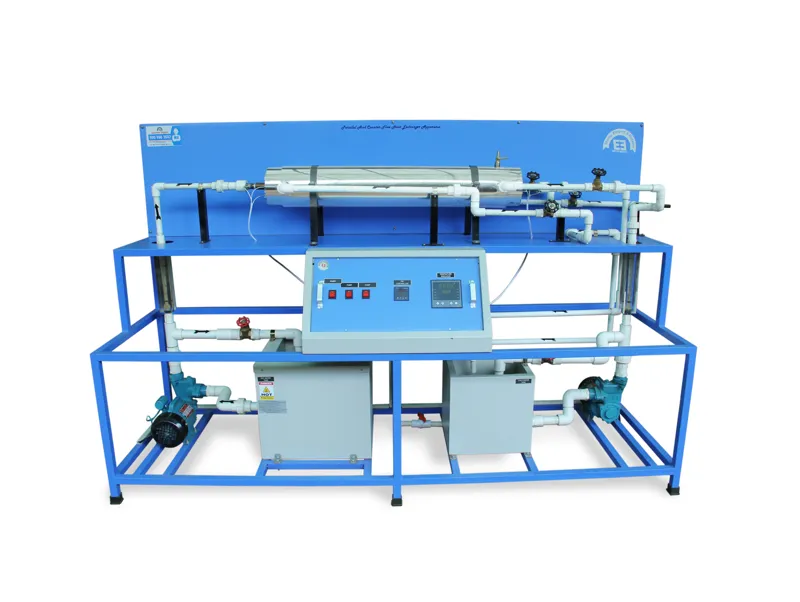

FINNED TUBE HEAT EXCHANGER APPARATUS-
Model Number : VIPL-HT
Detailed Specification as follows:
Experimentation :
- To calculate the following parameters for Finned tube Heat exchanger
- Rate of Heat Transfer
- LMTD
- Overall heat transfer co‑efficient.
- To compare the performance of Parallel & Counter flow heat exchanger.
Control Panel :
- Digital Temp. Controller: 0-199.9°c. (For Hot Water Tank)
- Digital Temp. Indicator: 0-199.9°c, With Multi-Channel Switch
- Temperature Sensors: Rtd Pt-100 Type.
- Standard Make On/Off Switch, Mains Indicator Etc.
| System | Water to Water, Concentric tube Type |
|---|---|
| Heat Exchanger | Length 1 m (approx) |
| Outer Tube | Material Stainless Steel. ID 27.5mm, OD 33.8mm (approx) |
| Inner Tube | Material Stainless Steel, OD 12.7mm (approx) |
| Water Flow Measurement | Rota meters (2 Nos) one each for cold & hot fluid. |
| Hot Water Tank | Made of Stainless Steel. Insulated with ceramic fiber wool. |
| Hot Water Circulation | 0.5 HP mono block Pump |
| Heater | 2 kw Nichrome wire heater (1 no) |
| Control Panel Comprising of | |
| Digital Temperature Controller | 0-199.9 C (For Hot Water Tank) |
| Digital Temperature Indicator | 0-199.9 C With Multi Channel scanner |
| Temperature sensor | RTD PT 100 type |
| Service Required | |
| 230 V.AC.,15 amp Stabilized supply with the product. | |
| Space area of 2 m x 0.5m at working height | |
| Continuous water supply at the rate of 20 lit/min | |
| Manual | An instruction manual is supplied along with the equipment which describes the apparatus and procedure of experimentation. |
