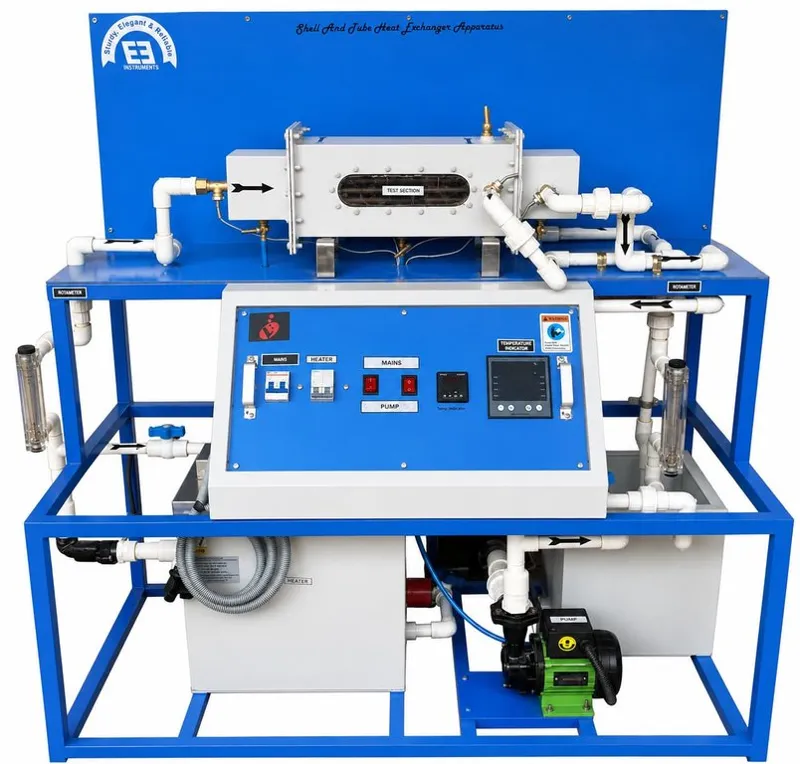

SHELL & TUBE HEAT EXCHANGER APPARATUS-

Experimentation:

1. Determination of heat transfer coefficient for   inner and outer surface of tubes.
2. Study of variation of heat transfer coefficient with the type of flow.

Descriptions:

1. Shell and Tube Heat exchanges are popular in chemical industries because they occupy less space and offer reasonable pressure drop. The apparatus consists of fabricated M.S. Shell, inside which copper tubes with baffles on outer side are fitted. Hot water is obtained from a hot water tank provided in the setup. This is a two pass heat exchangers so that hot water passes to one end of shell through the tubes and returns to another end through remaining tubes. The cold water is admitted at the bottom of shell, Which passes over the hot‑water tubes. Control valves are provided to control the flow rates of hot and cold water and flow rates are measured with the help of measuring tank.

Specifications:

Shell

1. Material: Mild Steel Material
2. Inner Dia: 208mm
3. Thickness: 5mm
4. Length: 500mm
5. 25% cut baffles at 100mm distance ‑ 4 Nos.

Tubes

1. Material: Copper
2. I.D.: 11 mm
3. O.D.: 12 mm
4. Length of Tubes: 500mm
5. Number of Tubes: 30mm

3) Measuring Tank: 300x300 x 300mm

4) Control Panel Comprising of

1. Digital Temperature Controller: 0‑199.9 C  (For Hot Water Tank)
2. Digital Temperature Indicator: 0‑199.9 C  With Multi‑Channel scanner
3. Temperature Sensors: RTD PT‑100 type

5) Water Flow Measurement: Rota meters (2 No's) one each for cold & hot  fluid.

6)Hot Water Tank : Made of Stainless Steel.  Insulated with ceramic fiber wool.

7)Hot Water Circulation: 0.5 HP mono block Pump

8)Heaters: 2 kw Nichrome wire heater (1 no)

Service Required:

1. 230 V.AC.,15 amp  Stabilized supply with the product.
2. Space area of 1.5 m x 0.5m at working height
3. Continuous water supply at the rate of 20 lit/min
4. An instruction manual is supplied along with the equipment which describes the apparatus and  procedure of experimentation
