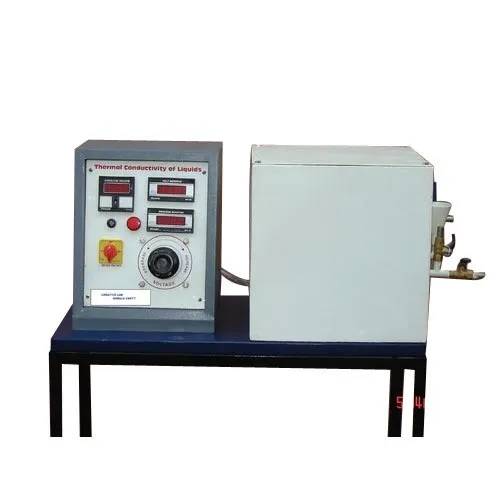

THERMAL CONDUCTIVITY OF LIQUID MEASURING

Technical Description:

1. The apparatus is designed to determine thermal conductivity of different liquids. The apparatus consists of a heater. The heater heats a thin layer of liquid. A cooling plate removes heat through liquid layer, ensuring unidirectional heat flow. Temperature is measured across the liquid layer and complete assembly is properly insulated. A proper arrangement for changing the liquids is provided. The whole assembly is kept in a chamber.


Learning Objects/experimentation:

1. Determination of thermal conductivity of liquid.
2. Study of variation of thermal conductivity of liquid with temperature.


Requirement For Operation:

1. Water supply 5 lit/min (approx.)
2. Drain.
3. Electricity Supply: 1 Phase, 220 V AC, 2 Amp.

Technical Specification:

1. Liquid Chamber: Dia 160 mm (approx).
2. Heater: Dia 100 mm sandwiched between copper plates.
3. Insulation : Ceramic Wool
4. Cooling chamber: Made of Aluminium for water circulation.
5. Control panel comprising of: Digital Voltmeter: 0-300 Volt. Digital Ammeter: 0-2 Amp. Variac : 0-230 V, 2 Amp. Digital Temp. Indicator: 0-199 C, with multi-channel switch Temperature Sensors: RTD PT-100 type. With standard make On/Off switch, Mains Indicator etc.
6. Instruction Manual : An ENGLISH instruction manual will be provided along with the Apparatus
7. Valves are provided for drain, charging & overflow line to make system flexible.
8. MS Cabinet to accommodate the slab assembly.
9. The whole setup is mounted on a powder coated base plate.

Control Panel:

1. Standard make on/off switch, Mains Indicator etc. Scope of Delivery:
2. 1 Self-contained “THERMAL CONDUCTIVITY OF LIQUIDS” Apparatus.
3. 1 Instruction Manual consisting of experimental procedures, block diagram etc
