UNSTEADY STATE HEAT TRANSFER APPARATUS-
Model Number : VIPL-HT-15
To determine the internal thermal resistance of the body by calculating Biot number for solid Cylinder.
Experimentation :
To determine the internal thermal resistance of the body by calculating Biot number for solid Cylinder.
Description :

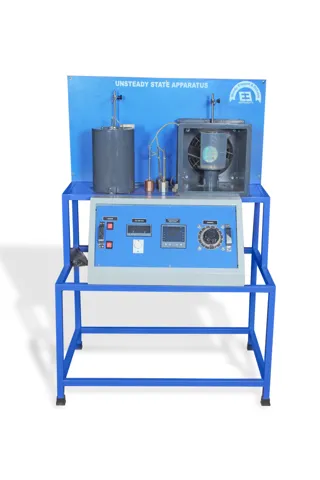

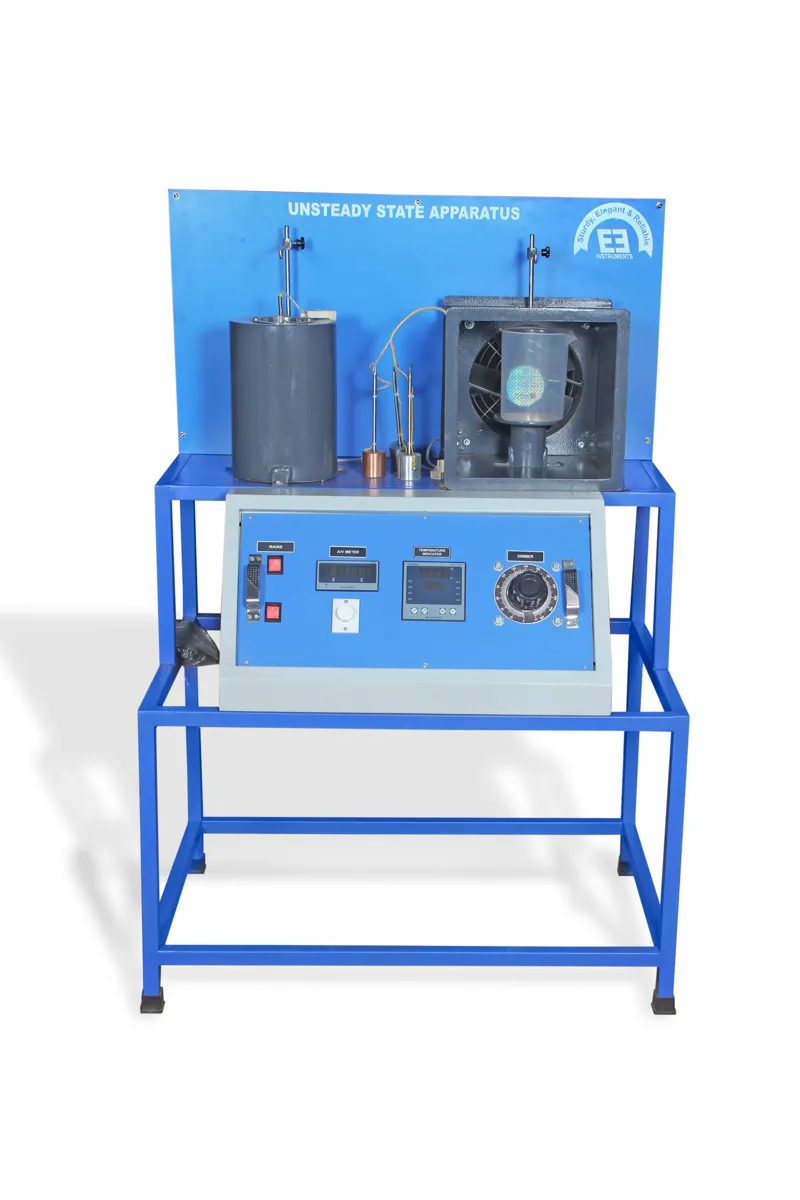

The apparatus consists of a small test cylinder rod made of Copper/S.S./Aluminum. The cylinder is heated by a constant temperature water bath, till steady state is reached. During heating, temperature of the cylinder is function of time and hence, heating of cylinder is under unsteady state heat transfer.
The temperature of cylinder is measured with the help of temperature sensor inserted in the center. The hot water bath is provided with a heater.
Specification :
Ø Water Bath : Material: Stainless Steel
Ø Capacity : 1 Ltr (approx.)
Ø Heater : ichrome Wire Heater 500W.
Ø Test Piece : Material: copper (50 mm dia,40 mm l)
Ø Temp. Sensor : k type
Ø Control Panel : Digital Temp. Indicator (0-200 ºC)
Ø ON/OFF Switch, Mains Indicator etc.
Service Required :
1.230 V.AC. Stabilized supply with the product.
2. Space area of 0.6 m x 0.5m at working height
An instruction manual is supplied along with the equipment which describes the apparatus and procedure of experimentation.
