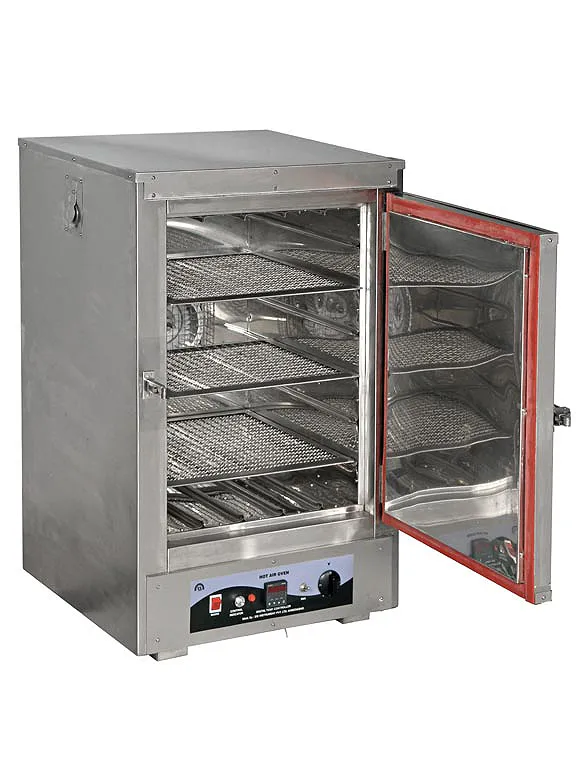

HOT AIR OVEN - GMP-54X34X180 CM-
Model Number : EIE-101DG330
Double walled, inner chamber S.S.304 mirror polished, Outer chamber S.S. 304 mat finished, 65 mm thick glass wool Insulation,80/20 nichrome Heating elements placed under ribs at bottom and sides for uniform heat distribution Temp. Range .50˚C to 100˚C,Auto tune Dual Display Digital Temp. Control, forced air circulation, working on 230 V AC Single Phase. Detailed specification as follows:
Salient Features :
- Exterior body made of Stainless steel material S.S. - 304 Grade
- Inner chamber is also made of Stainless Steel S.S. - 304 mirror polished material.
- 65mm high density Glass wool insulation on all sides to offer minimum chamber heat loss
- Oven is fitted with heating elements on all three sides, ensuring uniform temperature distribution throughout the working chamber
- Sealed and enclosed heaters to working chamber for minimum heat loss
- Microprocessor based Auto tune - PID Digital temperature indicator cum controller
- 80/20 nichrome heating elements, ensuring long lasting and continuous heating within the chamber
- Special heavy duty Stainless steel lock and door hinges with spring and roller mechanism
- Stainless steel crimped wire mesh Shelves to withstand heavy load and to offer minimum resistance to air circulation for better heat distribution
- Provision to add more shelves, as per requirement of test - Adjustable Shelves to place test samples or Glass wares of varying dimensions
- Adjustable air ventilation mounted at top
- Operation on 220/230 Volt, 50 Hz, Single phase, AC Supply
- With built-in forced air circulation arrangement for uniform heat distribution inside the working chamber
- Complete with pilot indicating lamps, 2 meter cord wire and power plug.
Optional accessories are at extra cost:
- Validation of Hot Air Oven: Price on request
- Over Temp Protection System-With Audio Alarm: Price on request
- Digital Temperature Controller with Soak Timer: Price on request
- Document - IQ, OQ, DQ Documentation: Price on request
| Inner working size | 180 x 54 x 34 cm ( H x W x D) |
|---|---|
| Chamber volume | 330 Liters |
| No. of trays | 7 No. (Additional shelf at extra cost) |
| Rating | 3 KW |
| Outer Chamber | Exterior body made of Stainless steel material S.S. 304 Grade |
| Inner chamber | Inner chamber is also made of Stainless Steel S.S. 304 mirror polished material. |
| Temperature Range | 50°C to 100°C |
| Controlling System | Microprocessor based Auto tune ‑ PID controller |
| Control | ± 1°C or better |
| Power Consumption | 220/230 Volt, 50 Hz, Single phase, AC Supply |
