DIGITAL SUB ZERO TEMP BATH

DIGITAL SUB ZERO TEMP BATH

Model Number : AEWS – 54

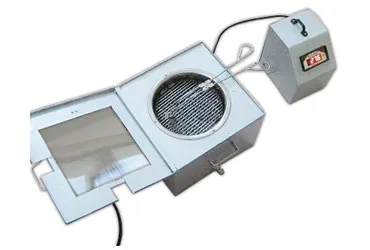

A sub ‘0’ Temperature bath is an extra accessories of Charpy Impact Machine. This unit is small and compact can be placed adjacent to pendulum Impact Machine while conducting Charpy Impact testing machine at temp 0°C to (-) 120°C. This unit is helpful to test operator for rapid cool down the temp. At a time 40 Nos. Charpy samples can be placed in the mesh of the container. This unit contains Digital Temp Indicator, Self centering Tong a set of mesh & steel container. Size 300 x 300 x 300 mm, Weight approximately 10.5 kg. Dry Ice Making Machine and CO2 cylinders are essentially required to produce dry ice and will be supplied at extra cost.

A Sub ‘0’ Temperature Bath is an extra accessory of the Charpy Impact Testing Machine. This unit is small and compact and can be placed adjacent to the Pendulum Impact Machine while conducting Charpy Impact testing at temperatures ranging from 0°C to (-)120°C.

The unit is helpful to the test operator for rapid cooling of the test temperature. At a time, 40 Nos. Charpy samples can be placed in the mesh container.

The unit consists of:

  1. Digital Temperature Indicator
  2. Self-centering Tong
  3. One Set of Mesh
  4. Steel Container

Size: 300 × 300 × 300 mm

Weight: Approximately 10.5 kg

Note: Dry Ice Making Machine and CO₂ Cylinders are essentially required to produce dry ice and will be supplied at extra cost.
