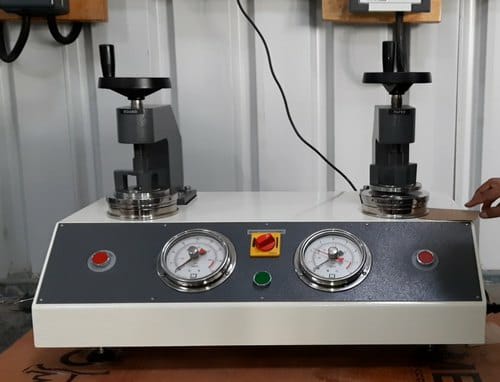

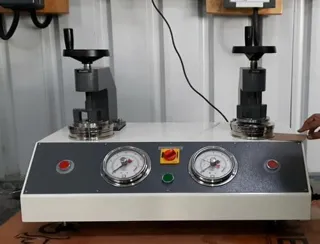

BURSTING STRENGTH TESTER-DUAL HEAD FOR PAPER AND BOARD-10 & 40 KG PER CM-MANUAL PRESSURE GAUGE MODEL
Model Number : EIE-PT-101DH10/40M
Manual Push Button type model indicating burst pressure on Bourdon Type Pressure Gauges capacity 08 kg/cm2 & 40 kg/cm2 for paper and paper board testing respectively.
Complies with following International Standards
ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403
Salient Features
- Proven and reliable performance
- Scientifically calibrated through our in‑house calibration laboratory
- Sturdy in construction
- Correctly matched motor gives constant pumping rate, eliminating manual error.
- Manual clamping of sample using hand wheel clamp.
- Benchtop model
- Single Push button operation
- Dual head for paper & board testing
- Individual diaphragms for Paper & Board Test
- Individual Bourdon Type Pressure Gauges for both the heads operation
- Selector switch to select either Paper testing or Board testing.
- Pressure gauge unit i.e. Kg/cm²
- Quick, Easy, Accurate & User Friendly Operation
- All replaceable parts are readily available
- Operates on Power supply of AC 220V, 5A, 50Hz
Supplied complete with following accessories
- A spare rubber diaphragm
- Standard aluminum foils - Medium Range - for calibration and cross‑verification purpose.
- Calibration certificate
- C Spanner to open the diaphragm clamping nut
- Test fluid bottle
| Instrument Body | Fabricated from Mild Steel Material |
|---|---|
| No of Heads | 02 Different heads - One for Paper testing & Another for Board Testing |
| Paint | Powder coating in attractive shades |
| Body size | 470 x 525 x 560 (D X H X W) MM |
| Test Fluid | EP 140 Gear Oil |
| Capacity of Test Fluid tank | 250 ml |
| Rate of Fluid Displacement | 170 ± 16 ml / Minute (For corrugated board and paper board) |
| Rate of Fluid Displacement | 96 ± 6 ml / Minute (For Paper material) |
| Opening of upper clamp | 31.50 mm (For corrugated board) / 30.50 mm (For paper) |
| Opening of Lower clamp | 31.50 mm (For corrugated board) / 33.10 mm (For paper) |
| Electric Motor | Reputed make induction motor to yield constant rate of pumping |
| Pressure gauge | Bourdon Type Pressure Gauges |
| Selector Switch | To changeover to paper & paper board mode |
| Dial Gauge 1 | 08 KG/CM2 - For Paper burst test |
| Dial Gauge 2 | 40 KG/CM2 - For Paper board burst test |
| Pressure Resolution | 0.1 Kg/cm2 & 0.5 Kg/Cm2 for paper & board test respectively |
| Power Supply | 220 Volts, 50 Hz, Single Phase, AC Supply |
| Weight (Approx.) | 53.350 PER UNIT |
