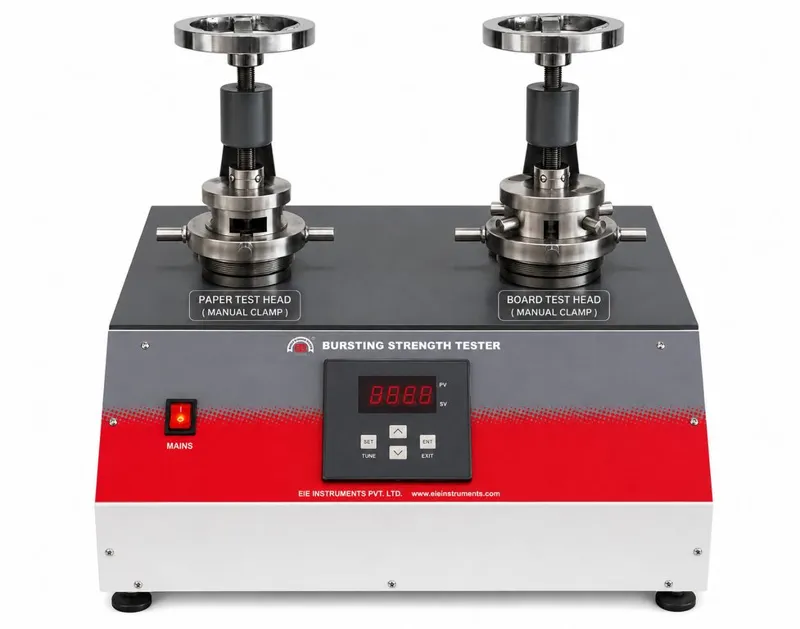

BURSTING STRENGTH TESTER-DUAL HEAD FOR PAPER AND BOARD-10 AND 50 KG PER CM2-DIGITAL ECONOMY MODEL

Complies with following International Standards :

ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403

Salient Features :

1. Proven and reliable performance
2. Scientifically calibrated through our in‑house calibration laboratory
3. Sturdy in construction
4. Correctly matched motor gives constant pumping rate, eliminating manual error as per ASTM, BS and ISO Standard requirements.
5. Manual clamping of sample using hand wheel clamp.
6. Dual head for paper & board testing
7. Two Diaphragm Seats.
8. Physical Selector switch to select either Paper testing or Board testing.
9. Logical Detection of Sample Failure
10. Common Digital Controller for both the heads operation
11. Digital Controller having Facility to Adjust Unit Selection viz. Kg/cm² and PSI
12. Stores data up to last FIVE readings & Yields Average Value, Max. Value & Min. Value of the Tests.
13. Quick, Easy, Accurate & User Friendly Operation
14. All replaceable parts are readily available

Salient features of Digital Controller :

1. Eliminates the need for holding down the push button to build up the pressure
2. No need to inspect the sample visually
3. It automatically reverses the motor operation and thereby releases the pressure on completion of the test cycle
4. Due to automatic pressure release mechanism, the diaphragm life is improved, which otherwise is not possible in manual pressure release mechanism.
5. Customer do not need to inspect and remember the breaking force all the time as it automatically gets registered within the Controller System

Supplied complete with following accessories :

1. A spare rubber diaphragm
2. Standard aluminum foils - Medium Range - for calibration and cross‑verification purpose.
3. Calibration certificate
4. C Spanner to open the diaphragm clamping nut
5. Test fluid bottle
