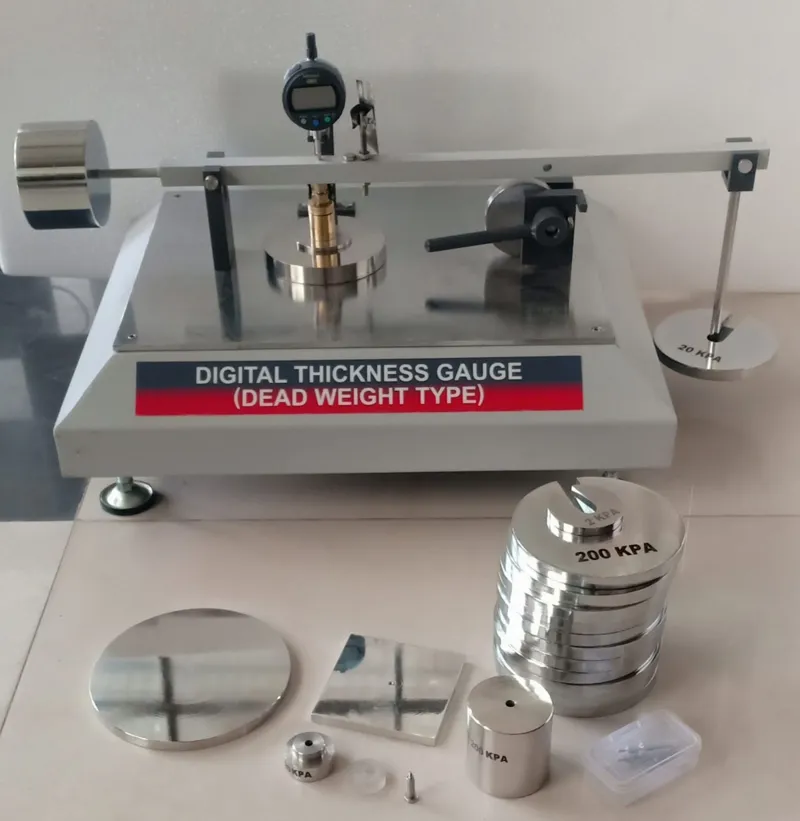

DIGITAL THICKNESS GAUGE - DEAD WEIGHT TYPE - 2, 20 & 200 KPA - 0.001 X 10 MM - INSIZE

Compliance Standards

ASTM D5199, ASTM D 5199, BS EN 964, ISO 9863, ASTM D1777-99,

Applications

To control the physical properties of Geotextile and Geosynthetic Material.

Details

1. Dead weight panel is provided to apply desired pressure varying from 50, 100 and 200 kpa
2. Surface plate is grounded and is rust free to enable reproducible results
3. Fitted with precise and accurate Mitutoyo thickness gauge
4. Digital indicator is easy to use while also being quick and efficient.
5. Ceramic Spindle tip and anvil
6. Automatic power off, Data output

Function of Digital Models (IDC Type)

1. ON/OFF
2. Inch/mm Conversion
3. Zero
4. Cr2032 Battery

Following Pressure foots and Dead Weight will be the part of standard supply.

Sr. No. Pressure Foot  Applied Load (Kpa) Application

1   56.4 mm   : 2 ± 0.01   Shall be used for Geotextile, Geocomposite, Drainage Material & Geonets

2    6.35 mm   : 20 ± 0.1, 200 ± 1 Shall be used for Geomembrane & HDPE Geomembrane.

3    10 mm   : 2 ± 0.01   Shall be used for Polymeric & Bituminous geosynthetic barrier Geomembrane.
