PAVER BLOCK COMPRESSION CUM FLEXURAL CUM SPLITTING TENSILE STRENGTH TESTING MACHINE

PAVER BLOCK COMPRESSION CUM FLEXURAL CUM SPLITTING TENSILE STRENGTH TESTING MACHINE

Model Number : TM-042FACFT.2000.

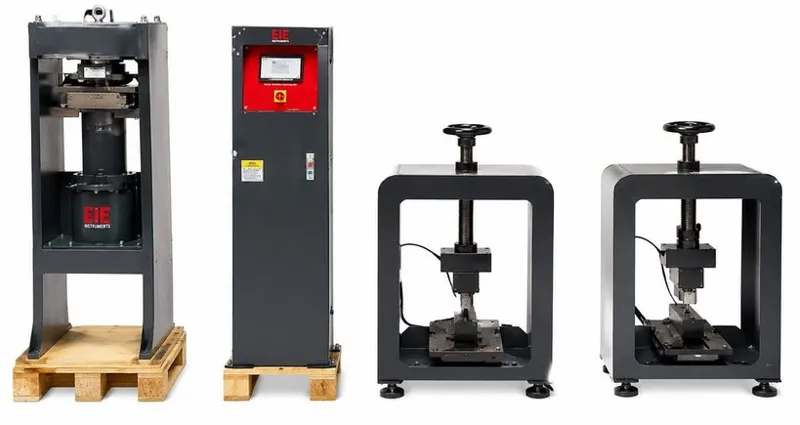

Universal Compression cum Flexural cum Splitting Tensile Strength Testing Machine - for paver block , Conforming to IS:15658:2021, EN 1338, ASTM C78, C496

Universal Compression cum Flexural cum Splitting Tensile Strength Testing Machine :

Conforming to IS:15658:2021, EN 1338, ASTM C78, C496

General Specification  :

  1. Machine Type : Fully Automatic Compression Testing System
  2. Power Supply : 230/240 V, 50–60 Hz, Single Phase
  3. Actuation Mechanism : Servo Motor-driven with dual stage hydraulic pump
  4. Test Modes : Compression, Flexural, Splitting Tensile
  5. Standards Compliance : IS 15658 (Annex D, F, G), EN 1338 (Annex I), ASTM C78, C496
  6. Pace Rate Control : Fully automatic with test-specific pre-sets

Machine Features :

  1. ·Servo-driven system for precision control
  2. ·Rapid piston approach with auto transition to test speed
  3. ·Inbuilt overload protection and emergency stop
  4. ·High-stiffness 4-column welded frame with spherical seat for alignment
  5. ·Surface hardness of platens: ≥ 60 HRC, flatness tolerance ≤ 0.03 mm
  6. ·Traceable hardness certificate (on request)

Test  Specifications :

Compression Test

  1. As per IS 15658:2021, Annex D
  2. Frame Capacity : 2000 kN (3000 kN Capacity available at extra cost)
  3. Pace Rate : 15 ± 3 MPa/min
  4. Least Count : 0.01 kN
  5. Accuracy : ±1%
  6. Specimen Max Size : 300 × 300 mm
  7. Execution : Auto Start–Stop, auto result generation

Flexural Strength Test :

  1. As per IS 15658:2021, Annex G / EN 1338:2003, Annex I / ASTM C78
  2. Frame Capacity : 100 kN (200 kN optional)
  3. Least Count : 0.01 kN
  4. Accuracy : ±0.2% of FS
  5. Pace Rate : 6 ± 0.6 kN/min
  6. Loading Rollers : 2 Nos., 32 mm dia
  7. Span : Adjustable span with modular support system

Splitting Tensile Strength Test :

  1. As per IS 15658:2021, Annex F / ASTM C496
  2. Frame Capacity : 200 kN
  3. Least Count : 0.01 kN
  4. Accuracy : ±1%
  5. Pace Rate : 0.05 ± 0.01 MPa/s (≈ 3 MPa/min)
  6. Features : Facility to input corrected thickness; Auto calculation of N/mm²

Digital Control & Display :

  1. 7" large color touchscreen controller
  2. Live load vs time graph
  3. Auto-save up to 100 test results
  4. USB export for offline data storage
  5. Soft start and auto pressure release after specimen failure

OPTIONAL ACCESSORIES (At extra cost) :

PC Software with Two-Way Communication

  1. Control : Operate machine via PC or touchscreen
  2. Data Export : Direct Excel export of results and graphs
  3. Customization : Set pace rate, sample dimensions, test type (CTM, flexural, aggregate crushing, etc.)
  4. Report Output : Printable reports with customer name, batch ID, timestamp, mold aging, etc.

Important Note :

·Stabilizer Requirement: Use of 3 KVA single-phase servo-controlled voltage stabilizer is essential.

·Warranty: Damage due to voltage fluctuation voids warranty.
