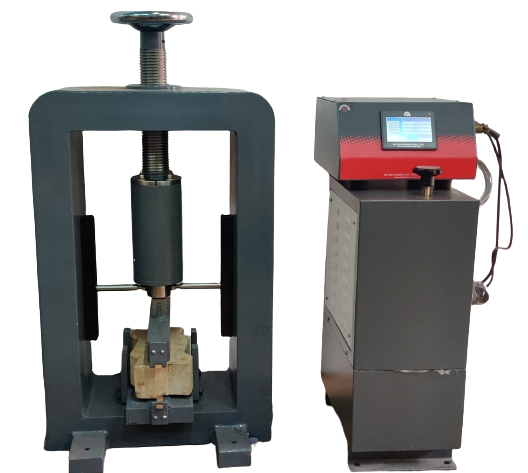

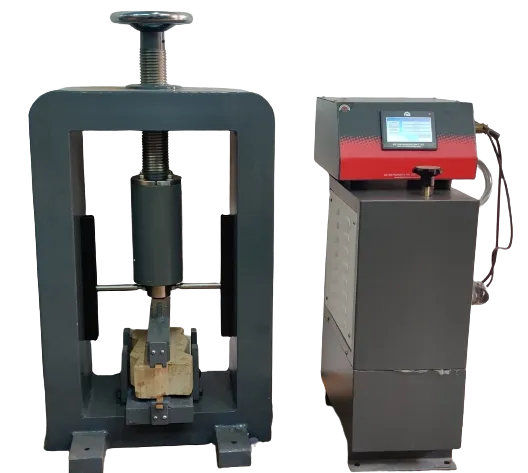

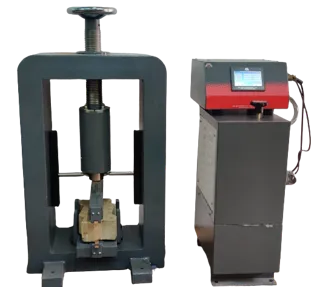

SPLITTING TENSILE TESTING MACHINE FOR PAVER BLOCK

As per IS 15658-2021/EN 1338

SPLITTING TENSILE TESTING MACHINE FOR PAVER BLCOK WITH AUTOMATIC PACE RATE CONTROL

1. Capacity : 200 kN
2. Least count : 0.01 kN
3. Accuracy : 1%
4. Display type : 4" colour touch screen
5. Pace rate : Controls automatically at 0.05 n/mm2 +/- 0.01 n/mm2 per second (3 n/mm2 per minute)
6. Facility to enter corrected thickness after failure of the sample
7. Direct result in n/mm2 ( No manual calculation required)
8. Saves last 10 reading in controller
9. Inbuilt USB drive to transfer the readings in computer
10. Simple plug and play instrument
11. Max size to accommodate the sample is 300 X 300 mm
12. Supplied with Voltage Stabilizer
