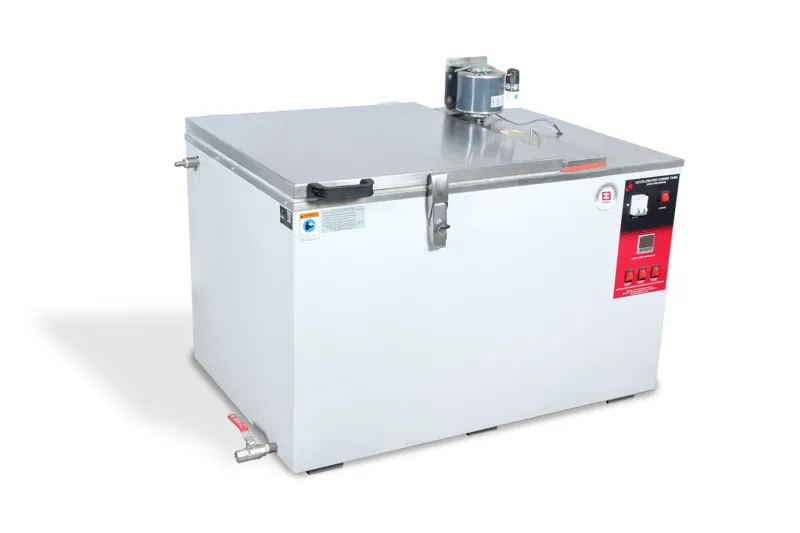

HOT WATER BATH-250 LITERS-DIGITAL-INNER S.S. CHAMBER-
Model Number : EIE-PVC-09DP250
Detailed specification as follows:
Compliance Standards
- IS 710, IS 1734, IS 4984
Applications
- Burst pressure test on tubes and pipes, Ageing test for plastics, Conditioning test for different materials.
| Type | Hot Water Bath |
|---|---|
| Inner Chamber | Stainless Steel S.S. - 304 Grade |
| Exterior body | Mild steel Material |
| Exterior Body Paint | Powder coating paint |
| Insulation | Glass-wool Insulation |
| Temperature Range | 5 °C above ambient to 90 °C |
| Temperature Control | Microprocessor Based PID Control action |
| Temperature Accuracy | ± 2 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Display | 7-Segment LED digital Display |
| Temperature sensor | PT-100 Sensor |
| Heating element | 3 KW X 03 NOS |
| Heater Types | Immersion Heaters |
| Motorized Stirrer | For uniform temp distribution |
| Motor of stirrer | Reputed make, 1440 rpm, single phase |
| Power Supply | 230 volts, 50 hz, single phase, AC Supply |
| Chamber volume | 250 LITERS |
