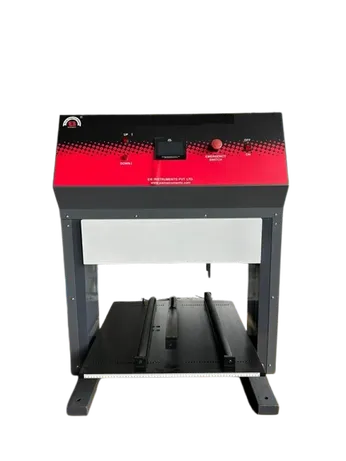

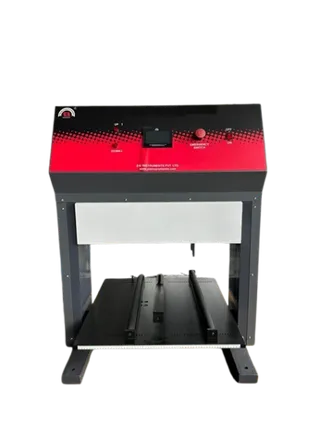

MOR TESTING MACHINE - FOR REFRACTORY PRODUCTS

MOR TESTING MACHINE - FOR REFRACTORY PRODUCTS

Model Number : TC-104EL30

As per IS : 1528 (Part-5) ISO 5014, with TOUCH SCREEN control panel and automatic pace rate control to control the rate of loading at 1 Newton per mm square per second. Capacity 50 kgf. Least count 0.1 kgf. with adjustable test span to accommodate different size prismatic specimen up. Direct reading of MOR value in KN or Kgf. Working on 230 V AC single Phase 60 Hz. PC connectivity with software available at extra cost Detailed Specification as per following page. Will be supplied with special triangle support for the casting and refractory.

Compliance with following international standards:

 IS : 1528 (Part-5) ISO 5014

Introduction:

Used for the determination of the modulus of rupture of dense and insulating shaped refractory products at ambient temperature, under conditions of a constant rate of increase of stress until failure occurs. The Prismatic specimen is bent in a three point bending device at constant rate of increase at ambient temp. until it fails to withstand the load.

  1. Electro-Mechanical Design, quite and vibration free operation, Rate of loading controlled through AC drive.
  2. Capacity    : 50 kgf
  3. Least Count : 0.1 Kgf
  4. Accuracy    : + 2% of Full Scale
  5. Constant Rate of loading adjustable from 0.5 to 1.52 kgf/cm2

Salient Features:

  1. Standard Digital Model with Load Cell
  2. Suitable for fired refractories
  3. Suitable for MOR Test of Prismatic Specimen
  4. Direct reading possible for different size of prismatic specimen
  5. Direct Display of Load / Collapsing Force
  6. Selectable Test Units - Kg, KN
  7. Auto-stop upon completion of Test.
  8. Provision for emergency switch in case, if user wants to stop the load applicator at certain height
  9. With LCD Display digital control panel.
  10. INTERGERATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
  11. With special guard to protect the operator against Ceramic splinters
  12. With adjustable Test Span
  13. With Auto-Calibration facility using standard Cast Iron Weights and standard code (Weights will not be supplied with the machine)
  14. Complete Unit is powder coated in attractive shades
  15. Operation on 230 Volt, 50 Hz, Single Phase, AC Supply

Support Rod and Central Load Applicator

  1. 02 Nos. triangular support rods and 01 central load applicator rod to apply three point loading.
  2. Radius of curvature 15 + 0.5mm ( 5mm + 0.5mm can be supplied at extra cost)
  3. The loading supports are adjustable.

Supplied with MOR Software (Optional accessories):

  1. PC Software to log & Modify the generated date
  2. Two way communication with the machine
  3. Direct reading of MOR value and Breaking strength in excel format
  4. Reading can be saved and printed from the computer
  5. Connection through RS-232 port
  6. User can start/stop the machine form the computer
  7. User can enter Batch no, Date, Time, Dimensions of the test samples for report purpose
  8. User can enter company LOGO for report generation
  9. Can export the generated report in PDF, EXCEL, WORD Format.

Note : 3 KVR servo controlled stabilizer is recommended

  1. Will be supplied with triangle three support to give three point loading
  2. The loading supports are adjustable.

Optional accessories at extra cost:

  1. Pc Software for MOR Testing Machine - ISO 10545-4: Price on request
