AIR CONDITIONING TEST RIG-
Model Number : VIPL-RAC-06

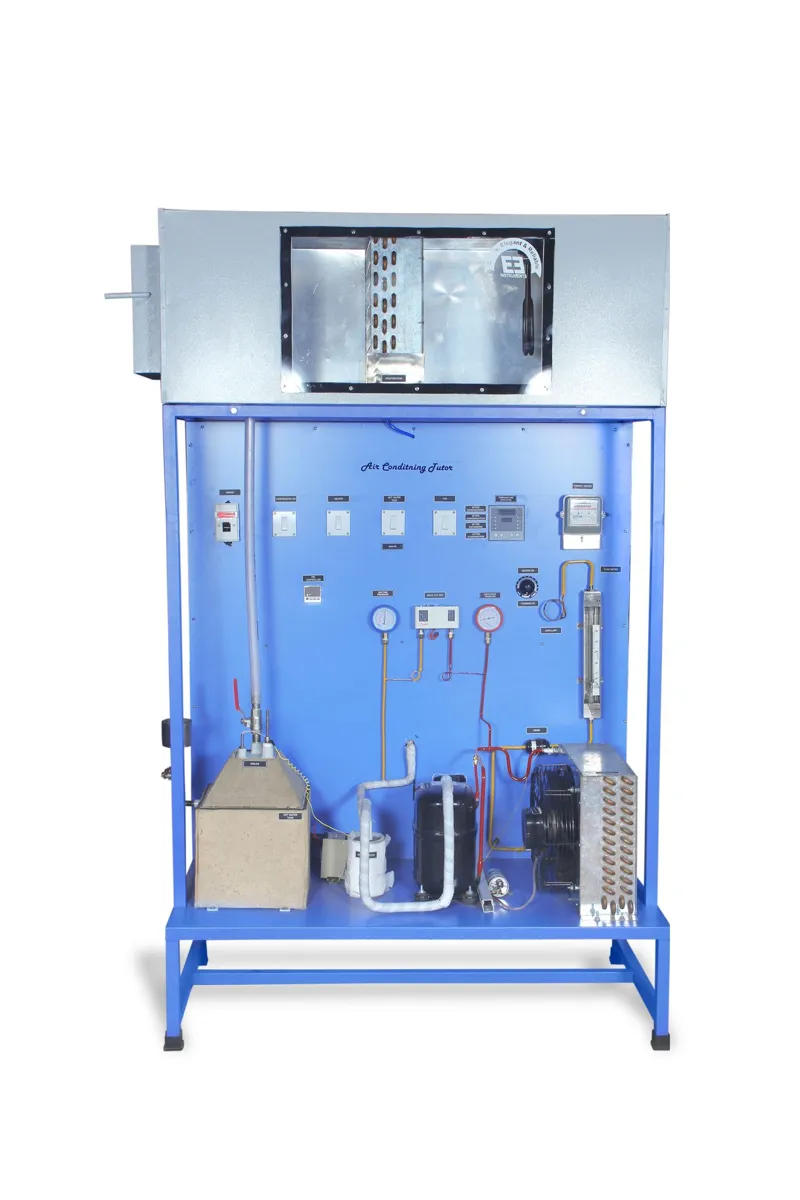

Window air conditioner test rig. Capacity : 0.75 TR, Refrigerant : R 22. Detailed Specification as follows:
List of Experiments :
- To study various components and controls used in window air conditioner.
- To evaluate the tonnage capacity of the air conditioning system by enthalpy difference method.
- To evaluate actual & theoretical c.o.p. of vapor compression cycle.
- To plot actual refrigeration cycle on p‑h chart.
Purpose :
The Window AC test rig is designed and manufactured such that the students can understand construction and working of a window type air conditioner and conduct the trial on it to evaluate performance of the same.
Details :
The window AC is fixed in a rigid angle frame, with its cover cut half open to reveal the internal parts of the AC. The required pressure and temperature tapings are drawn for measurement of pressures and temperatures at salient points. Energy meter is provided for recording compressor energy consumption. A sling psychrometer is provided for measurement of inlet and outlet Dry‑bulb & wet bulb temperature. With the help of manometer, velocity of air and consequently the flow rate of air can be determined.
