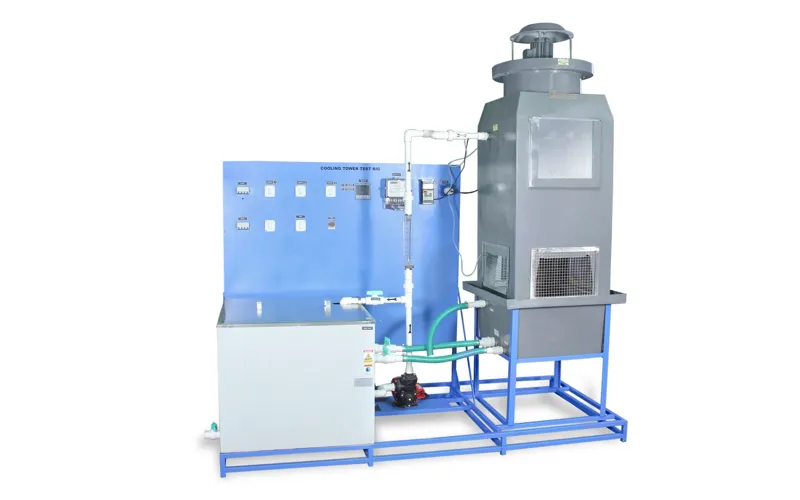

COOLING TOWER TEST RIG

Description :

Test Rig enables students to study and understand Cooling Tower, its components, principle and working. Cooling towers are a very important part of many chemical plants. The primary task of a cooling tower is to reject heat into the atmosphere. They represent a relatively inexpensive and dependable means of removing low-grade heat from cooling water. The make-up water source is used to replenish water lost to evaporation. Hot water from heat exchangers is sent to the cooling tower. The water exits the cooling tower and is sent back to the exchangers or to other units for further cooling.

Technical Specifications :

1. Capacity: 3 TR @ Rated Test Conditions
2. Medium: Water
3. Cooling Fan Motor: Provided Induction Type
4. Condenser: Forced Convection Air Cooled
5. Circulating Motor: Kirloskar Make Mini 28S / Equivalent
6. Heater: 3 Nos. × 1.5 kW Each
7. Scanner Provided: ES Point Make
8. Flow Measurement: Rotameter
9. DBT & WBT Measurement: By Sling Psychrometer
10. MCB: Provided I Pole and IV Pole Each
11. Contactors: Provided
12. Temperature Indication: Automatic by Temperature Scanner
13. Electrical Switches: Provided
14. Temperature Display: Digital LED
15. Insulation for Water Tank: FRP Coated
16. Power Supply: 440 Volts, 50 Hz, 3 Phase, AC
17. Construction (Main Body): 18 G CRCA, Powder Coated

List of Experiments :

1. To find L/G Ratio (Liquid and Gas Mass Flow Rate Ratio)
2. To find CT (Cooling Tower) Range
3. To find CT (Cooling Tower) Approach
4. To find Percentage of CT (Cooling Tower) Efficiency
5. To find Cooling Capacity.
